54AC05

Features: ·Outputs sink 24 mA·Open drain for wired NOR function·Standard Microcircuit Drawing (SMD) 5962-9059001PinoutSpecifications Temperature Min -55 deg C Temperature Max 125 deg C View Using CatalogIf Military/Aerospace specified devices are required, please contact the National ...

product image

54AC05 Picture
See larger image
SeekIC No. : 004233039 Detail

54AC05: Features: ·Outputs sink 24 mA·Open drain for wired NOR function·Standard Microcircuit Drawing (SMD) 5962-9059001PinoutSpecifications Temperature Min -55 deg C Temperature Max 125 deg C ...

54AC05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
54AC05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Outputs sink 24 mA
·Open drain for wired NOR function
·Standard Microcircuit Drawing (SMD) 5962-9059001

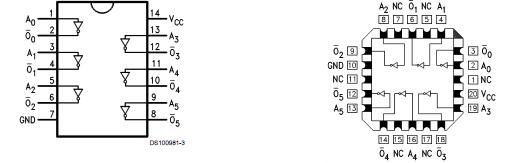

Pinout






Specifications

Temperature Min -55 deg C
Temperature Max 125 deg C
View Using Catalog


If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.

Supply Voltage (VCC)..... -0.5V to +7.0V
DC Input Diode Current (IIK)
VI = -0.5V ...............-20 mA
VI = VCC + 0.5V ............+20 mA
DC Input Voltage (VI) ...-0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = -0.5V.............. .-20 mA
VO = VCC + 0.5V............ +20 mA
DC Output Voltage (VO).-0.5V to to VCC + 0.5V
DC Output Source
or Sink Current (IO) ..........±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) ......±50 mA

Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply,temperature, and output/input loading variables. National does not recommend operation of FACT® circuits outside databook specifications.






Description

The 'AC05 contains six inverters.

More Application Notes

Title Size in Kbytes Date
AN-925: Radiation Design Test Data for Advanced CMOS Product 194 Kbytes 5-Aug-95 Download
AN-926: Radiation Design Considerations Using CMOS Logic 130 Kbytes 5-Aug-95 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.



The 'AC05 contains six inverters 54AC05.
