Product Details

Description

Features:

`I_CC and I_OZ reduced by 50%
`Multifunction capability
`Noninverting TRI-STATE outputs
`Outputs source/sink 24 mA
` 'ACT253 has TTL-compatible inputs
` Standard Military Drawing (SMD)
-'AC253: 5962-87693
-'ACT253: 5962-87761

Pinout

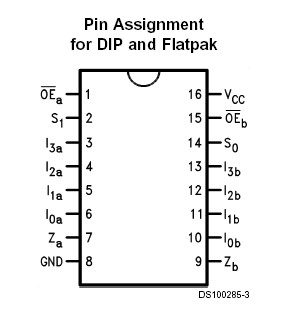

Connection Diagram

Specifications

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Supply Voltage (V_CC)
DC Input Diode Current (IIK)
V_I = −0.5V
V_I = V_CC+ 0.5V
DC Input Voltage (V_I)
DC Output Diode Current (I_OK)
V_O = −0.5V
V_O = V_CC + 0.5V
DC Output Voltage (V_O)
DC Output Source
or Sink Current (I_O)
DC V_CC or Ground Current
per Output Pin (I_CC or I_GND)
Storage Temperature (T_STG)
Junction Temperature (T_J)
CDIP

−0.5V to +7.0V

−20 mA
+20 mA
−0.5V to V_CC + 0.5V

−20 mA
+20 mA
−0.5V to V_CC + 0.5V

±50 mA

±50 mA
−65°C to +150°C

175°C

Description

The 54ACT253 is a dual 4-input multiplexer with TRI-STATE outputs. It can select two bits of data from four sources using common select inputs. The outputs of 54ACT253 may be individually switched to a high impedance state with a HIGH on the respective Output Enable (OE) inputs, allowing the outputs to interface directly with bus oriented systems.
