Product Details

Description

Features:

• 3-state outputs drive bus lines or buffer memory address
   registers
• RAD-PAK® radiation-hardened against natural space radiation
• Total dose hardness:
   - >100 krad (Si), depending upon space mission
• Package:
   - 20-pin R_AD-P_AK® flat package
• Operating temperature range:
   -55 to 125°C
• P-N-P inputs reduce DC loading
• Typical V_OLP (output ground bounce)
   - < 0.8 V at V_CC=3.3 V, T_A=25°C
• ESD protection exceeds 2000 V

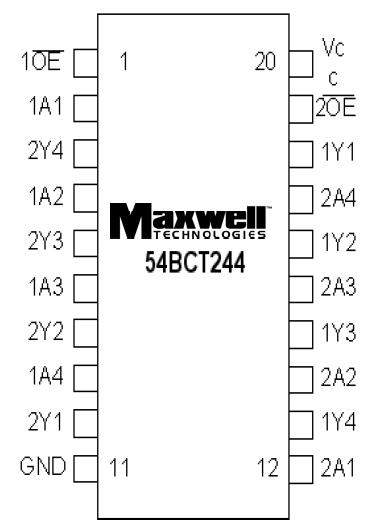

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	MIN	MAX	UNIT
Supply Voltage Range	V_CC	-0.5	7	V
Input Voltage Range2	V_I	-0.5	7	V
Voltage Range Applied to any Output in the Disable or Power-Off State2	V_O	-0.5	5.5	V
Voltage Range Applied to any Output in High State2	V_O	-0.5	V_CC	V
Current Into Any Output in the Low State	I_O	--	96	mA
Total Power Dissipation @ TA = +55 ³	P_D	--	651	mW
Operating Temperature Range	T_A	-55	125
Storage Temperature Range	T_S	-65	150

Description

Maxwell Technologies' 54BCT244 octal buffers and line drivers features a greater than 100 krad (Si) total dose tolerance; depending upon space misssion. The 54BCT244 is organized as two 4-bit drivers with separate output enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high impedance state.

Maxwell Technologies' patented RAD-PAK® of 54BCT244 packaging technology incorporates radiation shielding in the microcircuit package. It eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or a space mission. In a GEO orbit, RAD-PAK provides true greater than 100 krad (Si) total radiation dose tolerance, dependent upon space mission. This 54BCT244 is available with packaging and screening up to Class S.
