Product Details

Description



Features:

·Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
· Useful as input or output port for microprocessors
· Functionally identical to 'F373
· TRI-STATE outputs for bus interfacing
· Guaranteed 4000V minimum ESD protection

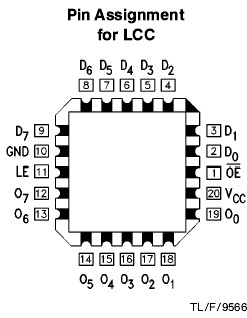

Pinout

Connection Diagram


Specifications

Storage Temperature
Ambient Temperature under Bias
Junction Temperature under Bias
Plastic
VCC Pin Potential to
Ground Pin
Input Voltage (Note 2)
Input Current (Note 2)
Voltage Applied to Output
in HIGH State (with VCC e 0V)
Standard Output
TRI-STATE Output
Current Applied to Output
in LOW State (Max)
ESD Last Passing Voltage (Min)
- 65 to + 150
-55 to + 125
-55 to +  175
-55 to +150

-0.5V to +7.0V
-0.5V to + 7.0V
-30 mA to + 5.0 mA

-0.5V to VCC
-0.5V to + 5.5V

twice the rated IOL (mA)
4000V

Note 1: Absolute maximum ratings are values beyond which the device may be damaged or have its useful life impaired. Functional operation under these conditions is not implied.
Note 2: Either voltage limit or current limit is sufficient to protect inputs.




Description

The 54F573DCQB is a high speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.

This 54F573DCQB is functionally identical to the 'F373 but has different pinouts.
