Part Number: 54LCX245
Description: The LCX245 contains eight non-inverting bidirectional buffers with TRI-STATE™ outputs and is int...
- Table of contents:
54LCX245
-
Suppliers
DataSheet
General Description
54LCX245 General Description
The LCX245 contains eight non-inverting bidirectional buffers with TRI-STATE™ outputs and is intended for bus oriented applications. The device is designed for low voltage (3.3V) VCC applications with capability of interfacing to a 5V signal environment. The T/R input determines the direction of data flow through the device. The OE input disables both the A and B ports by placing them in a high impedance state. The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
54LCX245 Maximum Ratings
Supply Voltage (VCC) ..............................................................................−0.5V to +7.0V
DC Input Voltage (VI) .............................................................................−0.5V to +7.0V
DC Input Diode Current (IIK)
VI < GND .........................................................................................................−50 mA
DC Output Diode Current (IOK)
VO < GND ..........................................................................................................−50mA
VO VCC ..........................................................................................................+50mA
DC Output Voltage (VO) (Note 2)
Output in High or Low State .........................................................-0.5V to VCC + 0.5V
Output in TRI-STATE -................................................................................0.5V to 7.0V
DC Output Source or Sink Current
(IO) ....................................................................................................................±50mA
DC VCC or Ground Current ...............................................................................±400mA
Storage Temperature Range
(TSTG) ...................................................................................................−65 to +150
Power Dissapation .............................................................................................750mW
Junction Temperature (TJ) .....................................................................................175
DC Input Voltage (VI) .............................................................................−0.5V to +7.0V
DC Input Diode Current (IIK)
VI < GND .........................................................................................................−50 mA
DC Output Diode Current (IOK)
VO < GND ..........................................................................................................−50mA
VO VCC ..........................................................................................................+50mA
DC Output Voltage (VO) (Note 2)
Output in High or Low State .........................................................-0.5V to VCC + 0.5V
Output in TRI-STATE -................................................................................0.5V to 7.0V
DC Output Source or Sink Current
(IO) ....................................................................................................................±50mA
DC VCC or Ground Current ...............................................................................±400mA
Storage Temperature Range
(TSTG) ...................................................................................................−65 to +150
Power Dissapation .............................................................................................750mW
Junction Temperature (TJ) .....................................................................................175
54LCX245 Features
* 5V tolerant inputs and outputs
* 9ns tPD max, 10µA ICCQ max
* Power down high impedance inputs and outputs
* Supports live insertion/withdrawal
* 2.0V3.6V VCC supply operation
* ±24 mA output drive
* Implements patented noise/EMI reduction circuitry
* Functionally compatible with the 54 series 245
* ESD performance:
Human body model > 2000V
Machine model > 200V
* Standard Microcircuit Drawing (SMD) 5962-97543
* 9ns tPD max, 10µA ICCQ max
* Power down high impedance inputs and outputs
* Supports live insertion/withdrawal
* 2.0V3.6V VCC supply operation
* ±24 mA output drive
* Implements patented noise/EMI reduction circuitry
* Functionally compatible with the 54 series 245
* ESD performance:
Human body model > 2000V
Machine model > 200V
* Standard Microcircuit Drawing (SMD) 5962-97543

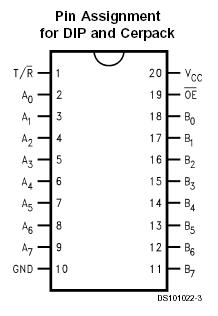

54LCX245 Connection Diagram
54LCX245
