54LS160A

Features:

 Synchronous counting and loading
 High speed synchronous expansion
 Typical count rate of 35 MHz
 Fully edge triggered

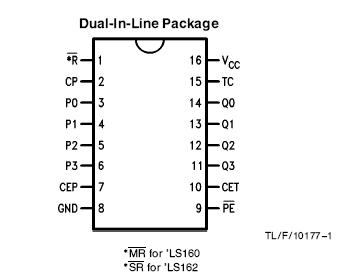

Pinout




Specifications

Supply Voltage                                          7V
Input Voltage                                            7V
Operating Free Air Temperature Range
     54LS                                        -55 to a125
     DM74LS                                          0 to a70
Storage Temperature Range         -65 to a150

Description

The 54LS160A are high speed synchronous decade counters operating in the BCD (8421) sequence. 54LS160A are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous
multistage counters. The 54LS160A has an asynchronous Master Reset input that overrides all other inputs and forces the outputs LOW. The 'LS162 has a Synchronous Reset input that overrides counting and parallel loading and allows all outputs to be simultaneously reset on the rising edge of the clock.
