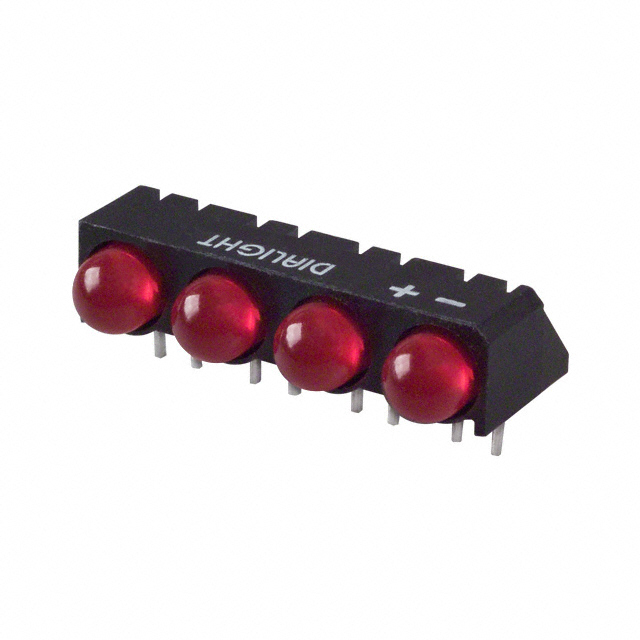

550-0407-004: LED Circuit Board Indicators RED DIFFUSED

550-0407-004 Data Sheet

Get Latest Price

Part Number:: 550-0407-004
Mfg:: Dialight
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

550-0001-853F evaluate
US $.26 - .44 / Piece

LED Circuit Board Indicators T 1 3/4 CBI
550-0001-857F evaluate
US $.52 - .52 / Piece

LED CBI 5MM 1LEVEL
550-0001-858F evaluate
US $.52 - .52 / Piece

LED CBI 5MM 1LEVEL

Product Details

Quick Details

Illumination Color :	Red	Lens Color/Style :	Tinted
Wavelength :	635 nm	Luminous Intensity :	12.3 mcd
Mounting Type :	Through Hole	Viewing Angle :	60 deg
Packaging :	Bulk

Description

LED Size :
Mounting Type : Through Hole
Viewing Angle : 60 deg
Packaging : Bulk
Lens Color/Style : Tinted
Illumination Color : Red
Luminous Intensity : 12.3 mcd
Wavelength : 635 nm

Features:

• Multiple CBIs form horizontal LED arrays on 6.35mm
(0.250") center-lines.
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 32%
• Polymer content: PBT, 0.680 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
• Compatible with:
550-xx07 Single-Block
550-xx07-002 Dual-Block

Specifications

	-9183	-9284
Forward Voltage (V)	7.5	7.5
Derating (V/°C) From 50°C	.071	.071
Operating Temperature (°C)	-40/+85	-40/+85
Storage Temperature (°C)	-55/+100	-55/+100
Soldering Temperature	260°C, 5 seconds, 1.6 mm from case

Parameters:

Technical/Catalog Information	550-0407-004
Vendor	Dialight
Category	Optoelectronics
Color	Red (x 4)
Mounting Type	Through Hole, Right Angle
Configuration	4 wide
Voltage Rating	2.0V
Current	20mA
Lens Style/Size	Round, 5mm, T-1 3/4
Packaging	Bulk
Lens Type	Diffused, Red Tinted
Other Names	550 0407 004 5500407004 350 1012 ND 3501012ND 350-1012
