552607B00000G: BOARD LEVEL HEAT SINK

552607B00000G Data Sheet

US $ 1.37~1.37 / Piece | Get Latest Price

Part Number:: 552607B00000G
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~3500

Unit Price
$1.37

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5526-1 evaluate
US $3.74 - 5.98 / Piece

RF Inductors 90 uH
5526-10 evaluate
US $2.84 - 3.74 / Piece

RF Inductors 420nH
5526-11 evaluate
US $2.84 - 3.74 / Piece

RF Inductors 491 uH

Product Details

Quick Details

Capacitance :	16.5 pF	Series:	-
Manufacturer:	Aavid Thermalloy	Type:	Board Level
Package Cooled:	TO-3	Attachment Method:	Bolt On
Shape:	Square	Length:	1.780" (45.21mm)
Width:	1.780" (45.21mm)	Diameter:	-
Height Off Base (Height of Fin):	1.220" (31.00mm)	Power Dissipation @ Temperature Rise:	4W @ 30°C
Thermal Resistance @ Forced Air Flow:	1.5°C/W @ 700 LFM	Thermal Resistance @ Natural:	4.4°C/W
Material:	Aluminum

Description

Type: Board Level
Attachment Method: Bolt On
Shape: Square
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Package Cooled: TO-3
Length: 1.780" (45.21mm)
Width: 1.780" (45.21mm)
Manufacturer: Aavid Thermalloy
Thermal Resistance @ Natural: 4.4°C/W
Power Dissipation @ Temperature Rise: 4W @ 30°C
Height Off Base (Height of Fin): 1.220" (31.00mm)
Thermal Resistance @ Forced Air Flow: 1.5°C/W @ 700 LFM

Pinout

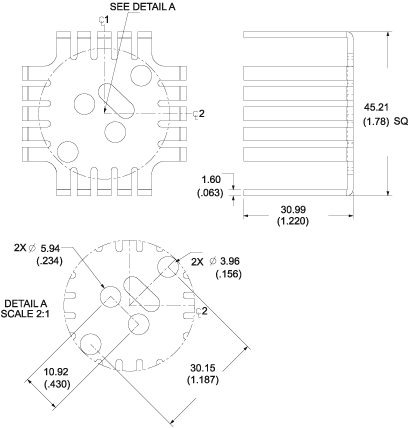

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
552607B00000G	Square basket heat sink with straight fins	Black Anodize	N/A

Description

Thermal Resistance

4.40

Thermal resistance value of 552607B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	552607B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On
Height	1.2" (31mm)
Material	-
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	4W @ 30°C
Thermal Resistance @ Forced Air Flow	1.5°C/W @ 700 LFM
Outline	45.21mm x 45.21mm
Thermal Resistance @ Natural	4.4°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	552607B00000G 552607B00000G
