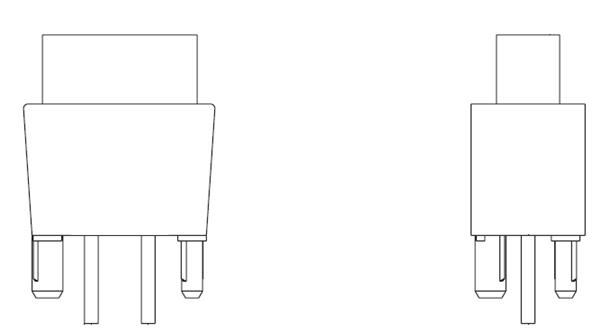

5612R1

Viewing Angle :
Mounting Type : Through Hole
Packaging : Bulk
Lens Color/Style : Tinted
Illumination Color : Red
Wavelength : 635 nm
Luminous Intensity : 5 mcd
LED Size : 7.3 mm


Pinout




Specifications

Part Number: 5612R1
Serial Number: 5612R
Emitted color: Red
Lens color: Red
Lum in min (mcd): 2.1
Lum in typ (mcd): 5
Rated current (mA): 20
Cont forward current max: 25
Fwd volts type: 1,9
Forward volt max.: 2,6
Reverse breakdown V: 5
Viewing angle (°): 100
Peak wave length (mA): 635
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5612R1 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	5612R1
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red
Mounting Type	Through Hole
Configuration	Single
Voltage Rating	2.1V
Current	20mA
Lens Style/Size	Rectangle, 7.3mm x 2.4mm
Packaging	Bulk
Lens Type	Diffused, Red Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5612R1 5612R1 L20501 ND L20501ND L20501
