Part Number: 5636D3
Description: CML LED assemblies are available in both right angle and vertical package and utilize the CML IT line ...
- Table of contents:
5636D3
-
Suppliers
DataSheet
General Description
5636D3 General Description
CML LED assemblies are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.
5636D3 Maximum Ratings
Part Number: 5636D3
Serial Number: 5636D
Emitted color: Amber
Lens color: Amber
Lum in min (mcd): 1.2
Lum in typ (mcd): 2.4
Rated current (mA): 20
Cont forward current max: 50
Fwd volts type: 2,2
Forward volt max.: 2,5
Reverse breakdown V: 4
Viewing angle (°): 100
Peak wave length (mA): 605
Housing type: UL94V-0
RoHS Status: Yes
Serial Number: 5636D
Emitted color: Amber
Lens color: Amber
Lum in min (mcd): 1.2
Lum in typ (mcd): 2.4
Rated current (mA): 20
Cont forward current max: 50
Fwd volts type: 2,2
Forward volt max.: 2,5
Reverse breakdown V: 4
Viewing angle (°): 100
Peak wave length (mA): 605
Housing type: UL94V-0
RoHS Status: Yes
5636D3 Connection Diagram
- Datasheet:
- File Size: KB
- Manufacturer:
- Click here to Download
- · EPCS4SI8
- 226669 KB
- · UTC2411
- 136508 KB
- ·(M5M410092B)
- Mitsubishi
- 3D-RAM
- 1268750 KB
- ·_FCQ30A06
- NIEC [Nihon Inter Electronics Corporation]
- LOW FORWARD VOLTAGE DROP
- 29515 KB
- ·0001.2501.PT
- Fuse
- 40400 KB
- ·0001.2501.TR
- Fuse
- 40400 KB
- ·0001.2502.PT
- Fuse
- 40400 KB
- ·0001.2502.TR
- Fuse
- 40400 KB
5636D3 Relative Products

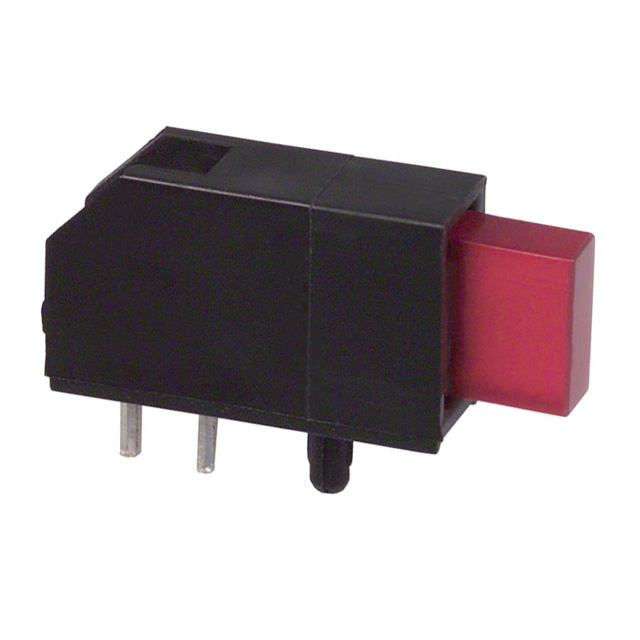

5636D1
