5638D1

Product :
Illumination Color : Red
Packaging : Bulk
Luminous Intensity : 1 mcd

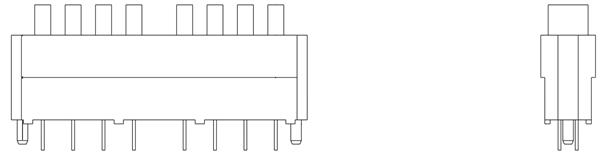

Pinout




Specifications

Part Number: 5638D1
Serial Number: 5638D
Emitted color: Red
Lens color: Red
Lum in min (mcd): 0.3
Lum in typ (mcd): 0.5
Rated current (mA): 10
Cont forward current max: 30
Fwd volts type: 2,1
Forward volt max.: 2,5
Reverse breakdown V: 4
Viewing angle (°): 100
Peak wave length (mA): 700
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5638D1 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	5638D1
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Red (x 10)
Mounting Type	Through Hole
Configuration	8 high x 1 wide
Voltage Rating	2.1V
Current	10mA
Lens Style/Size	Rectangle, 0.197mm x 0.79mm
Packaging	Bulk
Lens Type	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5638D1 5638D1 L20571 ND L20571ND L20571
