5655F7

Luminous Intensity :
Viewing Angle :
Mounting Type : Through Hole
Lens Color/Style : Tinted
Illumination Color : Yellow
Packaging : Reel
Wavelength : 585 nm
LED Size : 2.92 mm

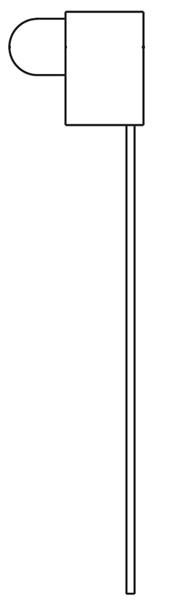

Pinout




Specifications

Part Number: 5655F7
Serial Number: 5655F
Emitted color: Yellow
Lens color: Yellow
Lum in min (mcd): 3.6
Lum in typ (mcd): 10
Rated current (mA): 10.0
Cont forward current max: 30.0
Fwd volts type: 2.1
Forward volt max.: 3.0
Reverse breakdown V: 5
Viewing angle (°): 55
Peak wave length (mA): 585
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 5655F7 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	5655F7
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Yellow
Mounting Type	Through Hole, Right Angle
Configuration	Single
Voltage Rating	2.1V
Current	10mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Tape & Reel (TR)
Lens Type	Diffused, Yellow Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	5655F7 5655F7 L60017TR ND L60017TRND L60017TR
