566010B03400G

Heat Sinks BLACK ANODIZE MULTIW

product image

566010B03400G Picture
See larger image
SeekIC No. : 002533117 Detail

566010B03400G: Heat Sinks BLACK ANODIZE MULTIW

566010B03400G Data Sheet

floor Price/Ceiling Price

US $ .6~.84 / Piece | Get Latest Price
Part Number:
566010B03400G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.84
  • $.77
  • $.69
  • $.6
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Thermal Resistance : 11.5 C / W
Length : 12.7 mm Width : 25.4 mm
Height : 30.99 mm Designed for : Multiwatt/SIP

Description

Fin Style :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Length : 12.7 mm
Width : 25.4 mm
Thermal Resistance : 11.5 C / W
Height : 30.99 mm
Designed for : Multiwatt/SIP


Pinout

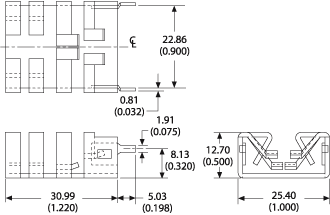

Connection Diagram


Specifications

Part # Description Finish Board Mounting
566010B03400G Plug in style heat sink with solderable tabs Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 11.50

Thermal resistance value of 566010B03400G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information566010B03400G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip and PC Pin
Height1.22" (30.99mm)
MaterialAluminum
Package Cooled-
Power Dissipation @ Temperature Rise2W @ 30°C
Thermal Resistance @ Forced Air Flow5.0°C/W @ 200 LFM
Outline25.40mm x 12.70mm
Thermal Resistance @ Natural11.5°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 566010B03400G
566010B03400G
HS377 ND
HS377ND
HS377
