566902B03100G

BOARD LEVEL HEAT SINK

product image

566902B03100G Picture
SeekIC No. : 003444181 Detail

566902B03100G: BOARD LEVEL HEAT SINK

floor Price/Ceiling Price

US $ .41~.41 / Piece | Get Latest Price
Part Number:
566902B03100G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~10000
  • Unit Price
  • $.41
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Capacitance : 16.5 pF Series: -
Manufacturer: Aavid Thermalloy Type: Board Level
Package Cooled: TO-220 Attachment Method: Clip and PC Pin
Shape: Rectangular Length: 0.850" (21.59mm)
Width: 1.000" (25.40mm) Diameter: -
Height Off Base (Height of Fin): 0.500" (12.70mm) Power Dissipation @ Temperature Rise: 2W @ 40°C
Thermal Resistance @ Forced Air Flow: 9.0°C/W @ 200 LFM Thermal Resistance @ Natural: 18.8°C/W
Material: Aluminum

Description

Type: Board Level
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Package Cooled: TO-220
Height Off Base (Height of Fin): 0.500" (12.70mm)
Width: 1.000" (25.40mm)
Attachment Method: Clip and PC Pin
Manufacturer: Aavid Thermalloy
Power Dissipation @ Temperature Rise: 2W @ 40°C
Length: 0.850" (21.59mm)
Thermal Resistance @ Forced Air Flow: 9.0°C/W @ 200 LFM
Thermal Resistance @ Natural: 18.8°C/W


Pinout

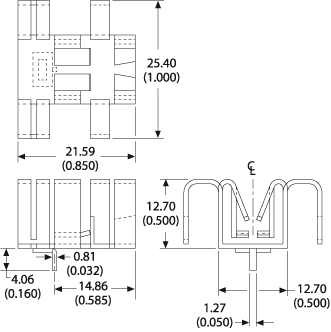

  Connection Diagram


Specifications

Part # Description Finish Board Mounting
566902B03100G Plug in style heat sink with folded back fins and horizontal mounting tab Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 18.80

Thermal resistance value of 566902B03100G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information566902B03100G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip
Height0.85" (21.59mm)
MaterialAluminum
Package CooledTO-220, TO-262
Power Dissipation @ Temperature Rise2W @ 40°C
Thermal Resistance @ Forced Air Flow9.0°C/W @ 200 LFM
Outline25.40mm x 12.70mm
Thermal Resistance @ Natural18.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 566902B03100G
566902B03100G
