569003B00000G

Heat Sinks BLACK ANODIZE TO-3

product image

569003B00000G Picture
See larger image
SeekIC No. : 002532959 Detail

569003B00000G: Heat Sinks BLACK ANODIZE TO-3

569003B00000G Data Sheet

floor Price/Ceiling Price

US $ .97~1.52 / Piece | Get Latest Price
Part Number:
569003B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $1.52
  • $1.34
  • $1.15
  • $.97
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Fin Style : Folded
Thermal Resistance : 5.5 C / W Length : 46.482 mm
Width : 46.482 mm Height : 33.274 mm
Designed for : TO-3

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Thermal Resistance : 5.5 C / W
Designed for : TO-3
Fin Style : Folded
Length : 46.482 mm
Width : 46.482 mm
Height : 33.274 mm


Pinout

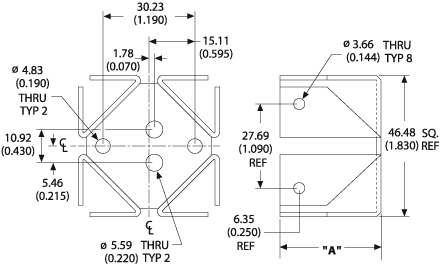

Connection Diagram


Specifications

Part # Description Finish Board Mounting
569003B00000G Square basket heat sink features folded back fins Black Anodize N/A



Description

Thermal Resistance 5.50

Thermal resistance value of 569003B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information569003B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height1.31" (33.27mm)
MaterialAluminum
Package CooledTO-3
Power Dissipation @ Temperature Rise12W @ 60°C
Thermal Resistance @ Forced Air Flow1.5°C/W @ 500 LFM
Outline46.48mm x 46.48mm
Thermal Resistance @ Natural5.5°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 569003B00000G
569003B00000G
HS110 3 ND
HS1103ND
HS110-3
