SeekIC No. : 002533259 Detail

573100D00000G: Heat Sinks D-PAK/TO-252 HTSINK

573100D00000G Data Sheet

US $ .32~.4 / Piece | Get Latest Price

Part Number:: 573100D00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.4
$.38
$.33
$.32

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

573100D00000 evaluate
US $.23 - .23 / Piece

Heat Sinks D-PAK/TO-252 HTSINK
573100D00010 evaluate
Heat Sinks SLV HEAT SINK TO-252
573102A evaluate
Features: • ROM : 4096×8 bits (LC573104A)2048×8 bits (LC573102A)• RAM : 64×4 bits̶...

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	SMD/SMT
Heatsink Material :	Copper	Thermal Resistance :	15 C / W
Length :	8 mm	Width :	22.86 mm
Height :	10.16 mm	Designed for :	TO-252

Description

Fin Style :
Product : Heatsinks
Mounting Style : SMD/SMT
Height : 10.16 mm
Heatsink Material : Copper
Thermal Resistance : 15 C / W
Width : 22.86 mm
Designed for : TO-252
Length : 8 mm

Pinout

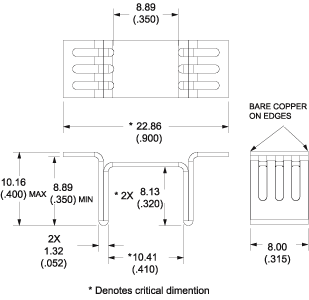

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
573100D00000G	Surface mount heat sink for D-Pak (TO-252) package semiconductors	Matte Tin Plated	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

15.00

Thermal resistance value of 573100D00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	573100D00000G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	SMD Pad
Height	0.4" (10.16mm)
Material	-
Package Cooled	DPak
Power Dissipation @ Temperature Rise	-
Thermal Resistance @ Forced Air Flow	12.5°C/W @ 600 LFM
Outline	22.86mm x 8.00mm
Thermal Resistance @ Natural	15°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	573100D00000G 573100D00000G HS407 ND HS407ND HS407
