573300D00010G

Heat Sinks SLV HEATSINK TO-263

product image

573300D00010G Picture
See larger image
SeekIC No. : 002532961 Detail

573300D00010G: Heat Sinks SLV HEATSINK TO-263

573300D00010G Data Sheet

floor Price/Ceiling Price

US $ .37~.45 / Piece | Get Latest Price
Part Number:
573300D00010G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.45
  • $.43
  • $.42
  • $.37
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Copper Thermal Resistance : 18 C / W
Length : 12.7 mm Width : 26.16 mm
Height : 10.16 mm Designed for : TO-263

Description

Fin Style :
Product : Heatsinks
Mounting Style : SMD/SMT
Height : 10.16 mm
Heatsink Material : Copper
Length : 12.7 mm
Thermal Resistance : 18 C / W
Width : 26.16 mm
Designed for : TO-263


Pinout

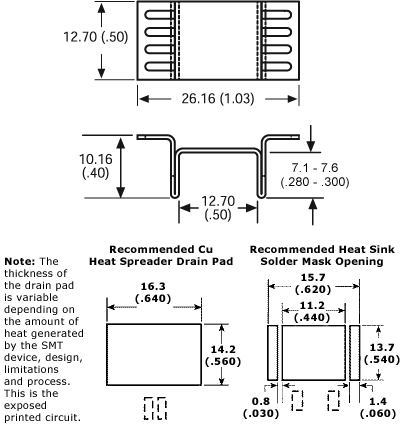

Connection Diagram


Specifications

Part # Description Finish Board Mounting
573300D00010G Surface mount heat sink for D2 Pak (TO-263) package semiconductors Matte Tin Plated N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 18.00

Thermal resistance value of 573300D00010G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information573300D00010G
VendorAavid Thermalloy (VA)
CategoryThermal Management
Attachment MethodSMD Pad
Height0.4" (10.16mm)
Material-
Package CooledD²Pak
Power Dissipation @ Temperature Rise1.25W @ 30°C
Thermal Resistance @ Forced Air Flow10.0°C/W @ 200 LFM
Outline26.16mm x 12.70mm
Thermal Resistance @ Natural18°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 573300D00010G
573300D00010G
HS338DKR ND
HS338DKRND
HS338DKR
