575300B00000G

Heat Sinks SLIP ON H/S TO-92 24.64mm VERT BLK

product image

575300B00000G Picture
See larger image
SeekIC No. : 002533741 Detail

575300B00000G: Heat Sinks SLIP ON H/S TO-92 24.64mm VERT BLK

575300B00000G Data Sheet

floor Price/Ceiling Price

US $ .95~1.06 / Piece | Get Latest Price
Part Number:
575300B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~3000
  • 3000~4000
  • 4000~6000
  • Unit Price
  • $1.06
  • $.98
  • $.95
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Slip On
Heatsink Material : Aluminum Thermal Resistance : 50 C / W
Width : 15.29 mm Height : 24.64 mm
Designed for : TO-92

Description

Fin Style :
Length :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Slip On
Designed for : TO-92
Thermal Resistance : 50 C / W
Width : 15.29 mm
Height : 24.64 mm


Pinout

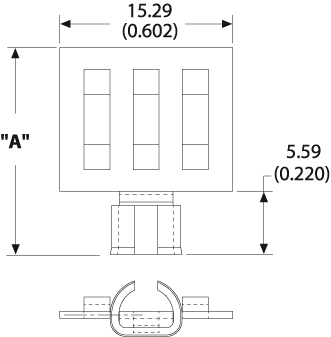

Connection Diagram


Specifications

Part # Description Finish Board Mounting
575300B00000G Low cost slip on heat sink Black Anodize N/A



Description

Thermal Resistance 50.00

Thermal resistance value of 575300B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information575300B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height0.97" (24.64mm)
MaterialAluminum
Package CooledTO-92
Power Dissipation @ Temperature Rise0.6W @ 30°C
Thermal Resistance @ Forced Air Flow25°C/W @ 100 LFM
Outline-
Thermal Resistance @ Natural50°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 575300B00000G
575300B00000G
