575703B00000G

Heat Sinks BLACK ANODIZE TO-3

product image

575703B00000G Picture
See larger image
SeekIC No. : 002532937 Detail

575703B00000G: Heat Sinks BLACK ANODIZE TO-3

575703B00000G Data Sheet

floor Price/Ceiling Price

US $ .62~.97 / Piece | Get Latest Price
Part Number:
575703B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $.97
  • $.86
  • $.73
  • $.62
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Heatsink Material : Aluminum
Thermal Resistance : 13.4 C / W Length : 41.402 mm
Width : 32.766 mm Height : 19.05 mm
Designed for : TO-3

Description

Fin Style :
Mounting Style :
Product : Heatsinks
Heatsink Material : Aluminum
Thermal Resistance : 13.4 C / W
Length : 41.402 mm
Width : 32.766 mm
Height : 19.05 mm
Designed for : TO-3


Pinout

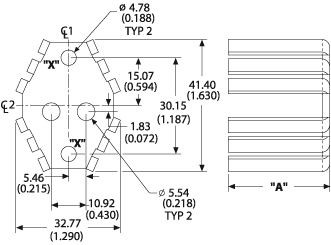

Connection Diagram


Specifications

Part # Description Finish Board Mounting
575703B00000G Space saver diamond shaped basket heat sink Black Anodize N/A



Description

Thermal Resistance 13.40

Thermal resistance value of 575703B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information575703B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height0.75" (19.05mm)
MaterialAluminum
Package CooledTO-3
Power Dissipation @ Temperature Rise2W @ 30°C
Thermal Resistance @ Forced Air Flow4.0°C/W @ 200 LFM
Outline41.40mm x 32.77mm
Thermal Resistance @ Natural13.4°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 575703B00000G
575703B00000G
