580600B00000G: Heat Sinks BLK HEAT SINK DIP-28

580600B00000G Data Sheet

US $ .41~.41 / Piece | Get Latest Price

Part Number:: 580600B00000G
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~1530

Unit Price
$.41

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

5806.2 evaluate
General Purpose / Industrial Relays RMH1Y High Current RelayModule, 240VAC, SPDT 1 ch
5806.3 evaluate
General Purpose / Industrial Relays RMH4Y High Current RelayModule, 240VAC, SPDT 4 ch
58061-1 evaluate
US $201.64 - 216.05 / Piece

Hand Tools HEAD IDC MTA 156

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Slide On
Heatsink Material :	Aluminum	Fin Style :	Staggered
Thermal Resistance :	20 C / W	Length :	42.67 mm
Width :	25.4 mm	Height :	14.86 mm
Designed for :	DIP-28

Description

Product : Heatsinks
Heatsink Material : Aluminum
Width : 25.4 mm
Fin Style : Staggered
Mounting Style : Slide On
Thermal Resistance : 20 C / W
Designed for : DIP-28
Length : 42.67 mm
Height : 14.86 mm

Pinout

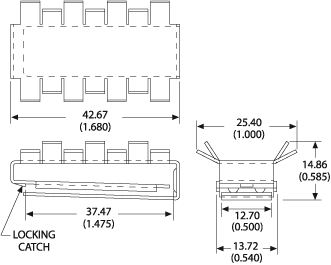

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
580600B00000G	Slide on heat sink with staggered fins for 28 pin DIP packages	Black Anodize	N/A

Description

Thermal Resistance

20.00

Thermal resistance value of 580600B00000G is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	580600B00000G
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip
Height	0.585" (14.86mm)
Material	Aluminum
Package Cooled	28-DIP
Power Dissipation @ Temperature Rise	1W @ 20°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 600 LFM
Outline	42.67mm x 25.4mm
Thermal Resistance @ Natural	20°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	580600B00000G 580600B00000G
