581001B02500

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Shape: Rectangular
Type: Board Level, Vertical
Attachment Method: Bolt On and PC Pin
Thermal Resistance @ Natural: 19.6°C/W
Manufacturer: Aavid Thermalloy
Length: 1.00" (25.40mm)
Width: 0.640" (16.26mm)
Height Off Base (Height of Fin): 0.640" (16.26mm)
Power Dissipation @ Temperature Rise: 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow: 4°C/W @ 500 LFM
Package Cooled: TO-218

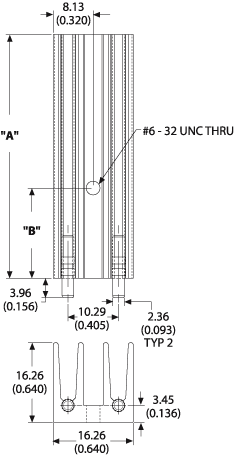

Pinout




Specifications

Part #	Description	Finish	Board Mounting
581001B02500	Flat back extruded heat sink featuring solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

19.60

Thermal resistance value of 581001B02500 is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information	581001B02500
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1" (25.4mm)
Material	Aluminum
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	2.5W @ 50°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 500 LFM
Outline	16.25mm x 16.25mm
Thermal Resistance @ Natural	19.6°C/W
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	581001B02500 581001B02500
