Features:

Full conformance to MIL-STD-1553A and 1553B
Completely monolithic bipolar technology
Low power consumption
Fit and functionally compatible to industry standard 631XX  series
Idle low encoding version
Flexible power supply voltages: V_CC =+5V, V_EE =-12V or  -15V, and VCCA=+5V to +12V or +5V to +15V
Full military operating temperature range, -55C to +125C, screened to QML Q or QML V requirements
Standard Military Drawing available


Pinout

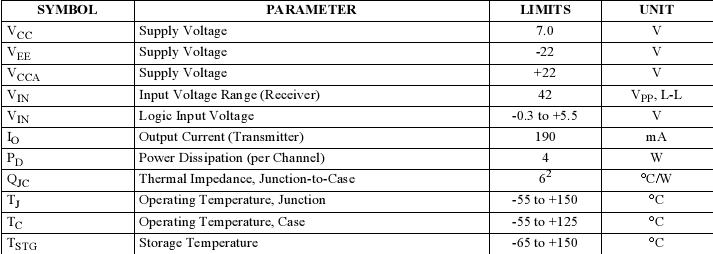

Specifications




Description

The monolithic UT63M1XX Transceivers are complete transmitter and receiver pairs conforming fully to MIL-STD-1553A and 1553B. Encoder and decoder interfaces are idle low. UTMC's advanced bipolar technology of UT63M1XX allows the positive analog power to range from +5V to +12V or +5V to +15V, providing more flexibility in system power supply design.

The receiver section of the UT63M1XX series accepts biphase-modulated Manchester II bipolar data from a MIL-STD-1553 data bus and produces TTL-level signal data at its RXOUT and RXOUT outputs. An external RXEN input enables or disables the receiver outputs.
