6284BG: BOARD LEVEL HEAT SINK

6284BG Data Sheet

US $ .4~.4 / Piece | Get Latest Price

Part Number:: 6284BG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~2000

Unit Price
$.4

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

6284 evaluate
Features: - SMD : 5962- 8671103XA*, 5962-9684303VXA** SpecificationsPower Dissipation 100 mWRevers...
62841-1 evaluate
US $.1 - .1 / Piece

CONN MAG-MATE 20-22AWG IDC

Product Details

Description

Pinout

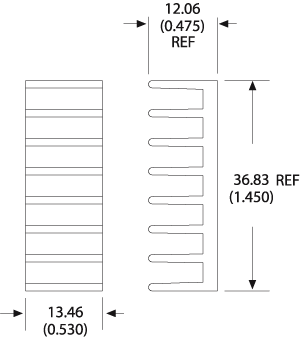

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
6284BG	Extruded epoxy attach heat sink for 28 pin DIP	Black Anodize	N/A

Description

Thermal Resistance

25.00

Thermal resistance value of 6284BG is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	6284BG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Thermal Tape, Adhesive (Not Included)
Height	0.47" (12mm)
Material	Aluminum
Package Cooled	28-DIP
Power Dissipation @ Temperature Rise	0.5W @ 20°C
Thermal Resistance @ Forced Air Flow	17.5°C/W @ 300 LFM
Outline	36.83mm x 13.46mm
Thermal Resistance @ Natural	25°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6284BG 6284BG
