6321F5

LED Size : 3 mm
Mounting Type : Through Hole
Illumination Color : Green
Lens Color/Style : Tinted, Diffused
Wavelength : 565 nm
Packaging : Bulk
Luminous Intensity : 8.5 mcd
Viewing Angle : 55 deg


Pinout




Specifications

Part Number: 6321F5
Serial Number: 6321F
Emitted color: Green
Lens color: Green
Lum in min (mcd): 9
Lum in typ (mcd): 25
Rated current (mA): 10
Cont forward current max: 30
Fwd volts type: 2,1
Forward volt max.: 3
Reverse breakdown V: 5
Viewing angle (°): 55
Peak wave length (mA): 563
Housing type: UL94V-0
RoHS Status: Yes


Description

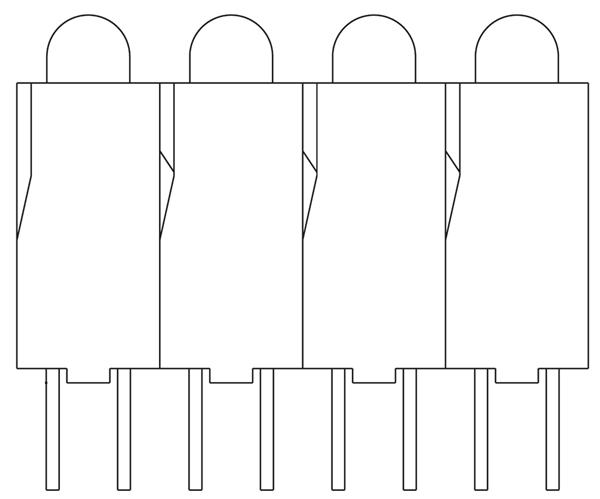

CML LED assemblies 6321F5 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	6321F5
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green
Mounting Type	Through Hole
Configuration	Single
Voltage Rating	2.1V
Current	10mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Bulk
Lens Type	Diffused, Green Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6321F5 6321F5 L20415 ND L20415ND L20415
