6322F55

LED Size :
Illumination Color :
Lens Color/Style :
Wavelength :
Luminous Intensity :
Mounting Type :
Viewing Angle :
Packaging : Bulk

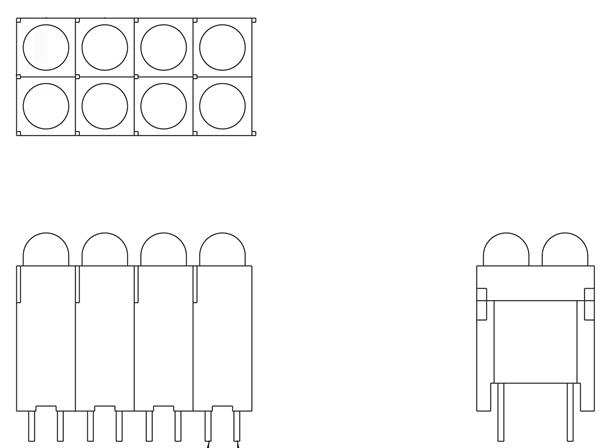

Pinout




Specifications

Part Number: 6322F55
Serial Number: 6322F
Emitted color: Green
Lens color: Green
Lum in min (mcd): 9
Lum in typ (mcd): 25
Rated current (mA): 10
Cont forward current max: 30
Fwd volts type: 2,1
Forward volt max.: 3
Reverse breakdown V: 5
Viewing angle (°): 55
Peak wave length (mA): 563
Housing type: UL94V-0
RoHS Status: Yes


Description

CML LED assemblies 6322F55 are available in both right angle and vertical package and utilize the CML IT line of high quality LEDs. Parts range in voltage from 2V to 12V and in current from 2mA to 20mA. The UL94V0 housings ensure proper LED alignment.


Parameters:

Technical/Catalog Information	6322F55
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green (x 2)
Mounting Type	Through Hole, Right Angle
Configuration	2 high
Voltage Rating	2.3V
Current	10mA
Lens Style/Size	Round, 3mm, T-1
Packaging	Bulk
Lens Type	Diffused, Green Tinted
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6322F55 6322F55 L206455 ND L206455ND L206455
