6382BG

Heat Sinks HIGH PWR EXTR MULTI 50.8mm VERT BLK

product image

6382BG Picture
See larger image
SeekIC No. : 002533795 Detail

6382BG: Heat Sinks HIGH PWR EXTR MULTI 50.8mm VERT BLK

6382BG Data Sheet

floor Price/Ceiling Price

US $ 5.78~6.56 / Piece | Get Latest Price
Part Number:
6382BG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~476
  • 476~500
  • 500~1000
  • Unit Price
  • $6.56
  • $6.25
  • $5.78
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Extruded
Length : 25.4 mm Width : 41.91 mm
Height : 50.8 mm Designed for : TO-220, TO-218, TO-247, Multiwatt

Description

Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 50.8 mm
Fin Style : Extruded
Length : 25.4 mm
Width : 41.91 mm
Designed for : TO-220, TO-218, TO-247, Multiwatt


Pinout

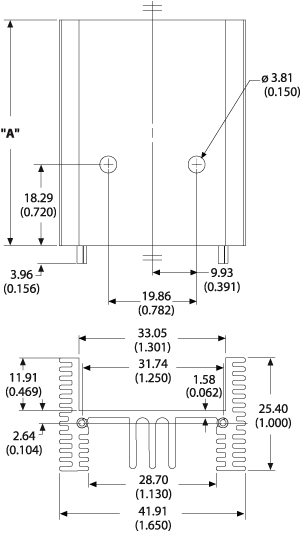

Connection Diagram


Specifications

Part # Description Finish Board Mounting
6382BG High power extruded heat sink with solderable pins Black Anodize N/A



Description

Thermal Resistance 4.20

Thermal resistance 6382BG value is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information6382BG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height1.500" (38.1mm)
MaterialAluminum
Package CooledTO-220, TO-218
Power Dissipation @ Temperature Rise12W @ 60°C
Thermal Resistance @ Forced Air Flow2.0°C/W @ 300 LFM
Outline41.91mm x 25.40mm
Thermal Resistance @ Natural5.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 6382BG
6382BG
