6398BG

Heat Sinks TO-220 VERT SLDR TAB

product image

6398BG Picture
See larger image
SeekIC No. : 002533848 Detail

6398BG: Heat Sinks TO-220 VERT SLDR TAB

6398BG Data Sheet

floor Price/Ceiling Price

US $ .83~.95 / Piece | Get Latest Price
Part Number:
6398BG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~2000
  • 2000~3000
  • Unit Price
  • $.95
  • $.83
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 4.4 C / W Length : 25.4 mm
Width : 41.91 mm Height : 38.1 mm
Designed for : TO-220

Description

Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Height : 38.1 mm
Fin Style : Radial
Length : 25.4 mm
Width : 41.91 mm
Thermal Resistance : 4.4 C / W


Pinout

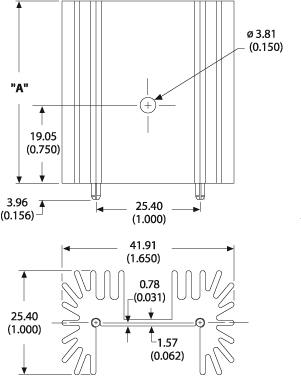

Connection Diagram


Specifications

Part # Description Finish Board Mounting
6398BG High power extruded Heatsink with large radial fins and straight pins Black Anodize View Hole Dimensions



Description

Thermal Resistance 4.40

Thermal resistance 6398BG value is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information6398BG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height1.5" (38.1mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise4W @ 30°C
Thermal Resistance @ Forced Air Flow2°C/W @ 400 LFM
Outline41.91mm x 25.40mm
Thermal Resistance @ Natural4.4°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 6398BG
6398BG
