6400BG, US $ 3.56-3.65 , Aavid Thermalloy, 6400BG DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002533748 Detail

6400BG: Heat Sinks HIGH PWR EXTR MULTI 63.5mm VERT BLK

6400BG Data Sheet

US $ 3.56~3.65 / Piece | Get Latest Price

Part Number:: 6400BG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~541
541~1000

Unit Price
$3.65
$3.56

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

6400 evaluate
Test Connectors FAST-ON TAB FOR PA
6400 SL001 evaluate
US $8571 - 8571 / Piece

Multi-Paired Cable 28AWG 31PR SHIELD 1000ft SPOOL SLATE
6400 SL002 evaluate
US $4876.7 - 4876.7 / Piece

Multi-Paired Cable 28AWG 31PR SHIELD 500ft SPOOL SLATE

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Aluminum	Fin Style :	Radial, Straight
Length :	25.4 mm	Width :	41.91 mm
Height :	63.5 mm	Designed for :	TO-220, TO-218, TO-247, Multiwatt

Description

Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Height : 63.5 mm
Length : 25.4 mm
Width : 41.91 mm
Fin Style : Radial, Straight
Designed for : TO-220, TO-218, TO-247, Multiwatt

Pinout

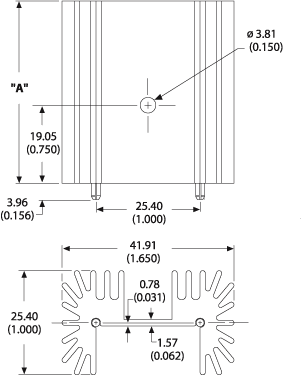

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
6400BG	High power extruded heat sink with large radial fins and straight pins	Black Anodize	N/A

Description

Thermal Resistance

2.70

Thermal resistance 6400BG value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	6400BG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	2.5" (63.5mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	4W @ 20°C
Thermal Resistance @ Forced Air Flow	1.5°C/W @ 400 LFM
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	2.7°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	6400BG 6400BG
