651431F

Features: • Fabricated in a CMOS process for low power operation (Standby mode can be controlled by CPU instructions.)• ROM/RAM LC651432N/F/L-ROM: 2 K *8 bits, RAM: 128 *4 bits LC651431N/F/L-ROM: 1 K* 8 bits, RAM: 64*4 bits• Instruction set: The 80-instruction set common to the w...

product image

651431F Picture
See larger image
SeekIC No. : 004237337 Detail

651431F: Features: • Fabricated in a CMOS process for low power operation (Standby mode can be controlled by CPU instructions.)• ROM/RAM LC651432N/F/L-ROM: 2 K *8 bits, RAM: 128 *4 bits LC651431N...

651431F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
651431F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fabricated in a CMOS process for low power operation (Standby mode can be controlled by CPU instructions.)
• ROM/RAM LC651432N/F/L
-ROM: 2 K *8 bits, RAM: 128 *4 bits LC651431N/F/L
-ROM: 1 K* 8 bits, RAM: 64*4 bits
• Instruction set: The 80-instruction set common to the whole LC6500 Series
• Wide operating supply voltage range of 2.2 to 6.0 V (L versions)
• Instruction cycle time of 0.92 s (F versions)
• On-chip serial I/O function
• Highly flexible I/O ports Number of ports
- 7 ports (Up to 25 pins) All ports
- Can be used for either input or output
- Voltage handling capability (input and output):
15 V maximum (For open-drain specification ports)
- Output current: 20 mA maximum sink current (Capable of directly driving an LED.) I/O port options to match application requirements:
- Open-drain output and pull-up resistor specification: Can be specified for all ports in bit units.
- Output level at reset specification: Either a high or low level can be specified for ports C and D in 4-bit units each.
• Interrupts Timer overflow vector interrupt (can also be tested by CPU instructions) INT pin or serial I/O full/empty vector interrupt (can also be tested by CPU instructions)
• Stack levels: 4 levels (also used by interrupts)
• Timers: 8-bit programmable timer with 4-bit prescaler
• Clock oscillator options to match application requirements: Oscillator circuit option:
- Two-pin RC oscillator (N and L versions) Two-pin ceramic oscillator or single external clock input pin (N, F, and L versions)
- Divider circuit option: No divider, built-in divideby- three circuit, built-in divide-by-four circuit (N and L versions)
• Continuous square-wave output with a period 64 times the cycle time.

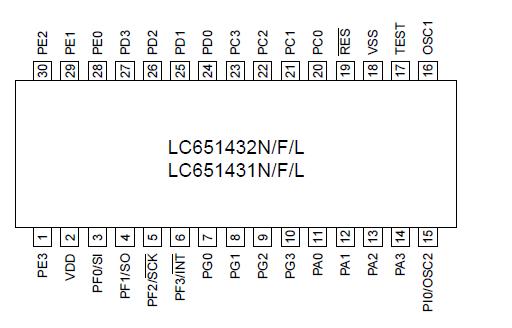

Pinout

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Applicable pins
Ratings
Unit
Maximum supply voltage
VDDmax
   VDD
0.3 to +7.0
V
Output voltage
VO
   OSC2
Voltages up to the voltage generated are allowed.
V
Input voltage
VI(1)
   OSC1 *1
0.3 to VDD + 0.3
V
VI(2)
   TEST, RES
0.3 to VDD + 0.3
V
I/O voltage
VIO(1)
   Ports with open-drain specifications
0.3 to +15
VIO(2)
   Ports with pull-up resistor specifications
0.3 to VDD + 0.3
mA
VIO(3)
   PI0
0.3 to VDD +0.3
Peak output current
IOP
   I/O ports
2 to +20
mA
Average output current
IOA
 Per single pin, the average over a
100 ms period		 I/O ports
2 to +20
mA
IOA(1)
 The total current for PC0 to 3,
PD0 to 3, and PE0 to 3*2		 PC0 to 3
15 to +100
mA
PD0 to 3
PE0 to 3
IOA(2)
 The total current for PF0 to 3,
PG0 to 3, PA0 to 3, and PI0*2		 PF0 to 3, PI0
15 to +100
mA
PG0 to 3
PA0 to 3
Allowable power dissipation
Pdma(1)
 Ta = 40 to +85°C (DIP package)
310
mW
Pdma(2)
 Ta = 40 to +85°C (MFP package)
220
mW
Pdma(3)
 Ta = 40 to +85°C (SSOP package)
160
mW
Operating temperature
Topr

40 to +85
°C
Storage temperature
Tstg

55 to 125
°C



Description

The 651431F is the smallscale control models in Sanyo's LC6500 Series of 4-bit microcontrollers and feature the same basic architecture and instruction set. These microcontrollers are appropriate for a wide range of applications, from applications that require only a limited number of circuits and controls and were previously implemented in standard logic to larger application such as audio equipment, including tape decks and disc players, office equipment, communication equipment, automotive equipment, and home appliances. Furthermore, since these products have equivalent basic functions (although there are differences in some functions and characteristics) and are pin compatible with the earlier 651431F products, they can be used to replace those devices.
