Features: • Fast access times: 3.5, 3.8, and 4.0ns
• Fast clock speed: 166, 150, 133, and 117MHz
• Provide high performance 3-1-1-1 access rate
• Fast OE# access times: 3.5ns and 3.8ns
• Optimal for performance (two cycle chip deselect, depth xpansion without wait state)
• 3.3V -5% and +10% core power supply
• 2.5V or 3.3V I/O supply
• 5V tolerant inputs except I/O's
• Clamp diodes to VSSQ at all inputs and outputs
• Common data inputs and data outputs
• BYTE WRITE ENABLE and GLOBAL WRITE control
• Three chip enables for depth expansion and address ipeline
• Address, data and control registers
• Internally self-timed WRITE CYCLE
• Burst control pins (interleaved or linear burst sequence)
• Automatic power-down for portable applications

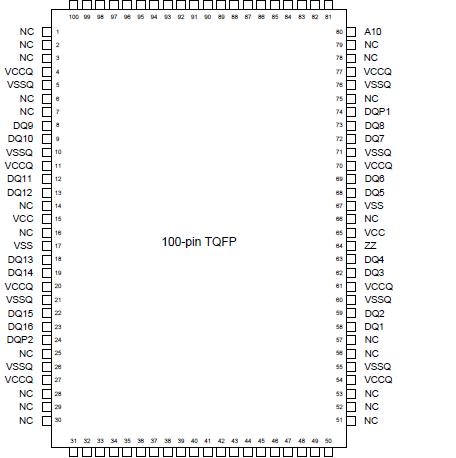

• High density, high speed packagesPinout
SpecificationsVoltage on VCC Supply Relative to VSS....... -0.5V to +4.6V
VIN .......................................................... -0.5V to VCC+0.5V
Storage Temperature (plastic) .......................-55oC to +150o
Junction Temperature ...................................................+150o
Power Dissipation ...........................................................1.0W
Short Circuit Output Current ..........................................50mA
*Stresses greater than those listed uunder "Absolute Maximum atings" may cause permanent damage to the device.This is a stress ating only and functional operation of the device at these or any ther conditions above those indicated in the operational sections of his specification is not implied. Exposure to absolute maximum ating conditions for extended periods may affect reliability.
DescriptionThe Galvantech Synchronous Burst SRAM family mploys high-speed, low power CMOS designs using dvanced triple-layer polysilicon, double-layer metal echnology. Each memory cell consists of four transistors and wo high valued resistors.
The 6518 SRAM integrates 262,144x18 RAM cells with advanced synchronous peripheral circuitry nd a 2-bit counter for internal burst operation. All ynchronous inputs are gated by registers controlled by a ositive-edge-triggered clock input (CLK). The synchronous nputs include all addresses, all data inputs, address-pipelining hip enable (CE#), depth-expansion chip enables (CE2# and E2), burst control inputs (ADSC#, ADSP#, and ADV#),write enables (WEL#, WEH#, and BWE#), and global write GW#).
The 6518 operates from a +3.3V core power upply and all outputs operate on a +2.5V supply. All inputs nd outputs are JEDEC standard JESD8-5 compatible. The evice is ideally suited for 486, PentiumTM, 680x0, and owerPCTM systems and for systems that are benefited from a ide synchronous data bus.
6518 Data Sheet
