• Low Cost
• HC05 Core
• 28-Pin Plastic Dual In-Line (PDIP), Small Outline Integrated Circuit (SOIC), or 44-Lead Plastic Leaded Chip Carrier(PLCC) Packages
• On-Chip Oscillator with Crystal/Ceramic Resonator
• 4-MHz Maximum Oscillator Frequency at 5 V and 3.3 V Supply
• Fully Static Operation
• 15,936 Bytes of User ROM
• 64 Bytes of Burn-In ROM
• 352 Bytes of On-Chip RAM
• 14-Stage Core Timer with Real-Time Interrupt (RTI) and Computer Operating Properly (COP) Watchdog Circuits
• Carrier Modulator Transmitter Supporting Baseband, Pulse Length Modulator (PLM), and Frequency Shift Keying (FSK)Protocols
• Low-Power Reset Pin
• 20 Bidirectional I/O Lines (Four Additional I/O Lines Available for Bond Out in 44-Lead PLCC Package)
• Mask Programmable Pullups and Interrupt on Eight Port Pins (PB0PB7)
• High-Current Infrared (IR) Drive Pin
• High-Current Port Pin (PC0)
• Power-Saving Stop and Wait Modes
• Mask Selectable Options:
COP Watchdog Timer
STOP Instruction Disable
Edge-Sensitive or Edge- and Level-Sensitive Interrupt Trigger
Port B Pullups for Keyscan
The MC68HC705RC16 is a low-cost addition to the M68HC05 Family of microcontrollers (MCUs) and is suitable for remote control applications.It contains the HC05 CPU core, including the 14-stage core timer with RTI and COP watchdog systems. On-chip peripherals include a carrier modulator transmitter. The 16-Kbyte memory map has 15,936 bytes of user EPROM, 340 bytes of boot ROM, and 352 bytes of RAM. There are 20 input/output (I/O) lines (eight having keyscan pullups/interrupts) and a low-power reset pin.

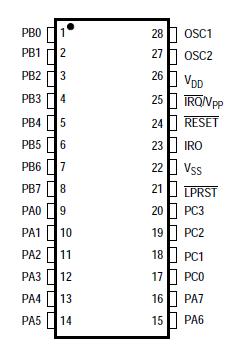

The MC68HC705RC16 is available in 28-pin small outline integrated circuit (SOIC), dual in-line (DIP), or plastic leaded chip carrier (PLCC) packages. Four additional I/O lines are available for bond out in the 44-lead PLCC package.
