Features: 50 V Minimum Output Clamp Voltage
150 mA Output Current (all outputs simultaneously)
5 Ω Typical rDS(on)
Low Power Consumption

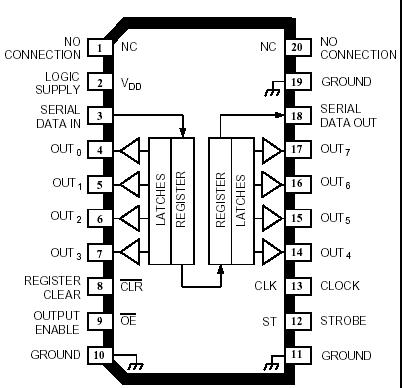

Replacements for TPIC6B595N and TPIC6B595DWPinout
SpecificationsOutput Voltage, VO ............................... 50 V
Output Drain Current,
Continuous, IO ................................ 150 mA*
Peak, IOM ....................................... 500 mA†
Single-Pulse Avalanche Energy,
EAS ..................................................... 30 mJ
Logic Supply Voltage, VDD ................... 7.0 V
Input Voltage Range,
VI ........................................ -0.3 V to +7.0 V
Package Power Dissipation,
PD ................................................ See Graph
Operating Temperature Range,
TA ................................... -40°C to +125°C
Storage Temperature Range,
TS ................................... -55°C to +150°CDescriptionThe A6B595KA and A6B595KLW combine an 8-bit CMOS shift register and accompanying data latches, control circuitry, and DMOS power driver outputs. Power driver applications include relays, solenoids, and other medium-current or high-voltage peripheral power loads.
The serial-data input, CMOS shift register and latches allow direct interfacing with microprocessor-based systems. Serial-data input rates are over 5 MHz. Use with TTL may require appropriate pull-up resistors to ensure an input logic high.
A CMOS serial-data output enables cascade connections in applications requiring additional drive lines. Similar devices with reduced rDS(on) are available as the A6595KA and A6595KLW.
The A6B595 DMOS open-drain outputs are capable of sinking up to 500 mA. All of the output drivers are disabled (the DMOS sink drivers turned off) by the OUTPUT ENABLE input high.
The A6B595KA is furnished in a 20-pin dual in-line plastic package. The A6B595KLW is furnished in a wide-body, small-outline plastic package (SOIC) with gull-wing leads. Copper lead frames, reduced supply current requirements, and low on-state resistance allow both devices to sink 150 mA from all outputs continuously, to ambient temperatures over 85°C.
6B595 Data Sheet
