Part Number: 6EH5
Category: Filters
MFG: Tyco Electronics
Descriptions: FILTER RFI LINE MED R/A WIRE 6A
- Table of contents:
6EH5
-
Suppliers
DataSheet
General Description
Attentive hint
Want to post a buying lead? If you are not a member yet, please input the part number and fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
-
6EH5 Quality Supplier:
BONASE(HK) ELECTRONICS CO., LIMITED COMPANY
Contact: Mr.Vincent
Tel: 0755-8257-9312
Adddate: 2010-09-03
(1027)
Contact: Ms.Mency
Tel: +86-0755-83014238
Adddate: 2010-09-03
(342)
Contact: Mr.Tony
Tel: +86-755-82862373
Adddate: 2010-09-03
(67)
About 6EH7
PDF/DataSheet Download
Datasheet: 6EH7
File Size: 54523 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
General Description
The sylvania types 6EH5,12EH5,25EH5 and 50EH5 are miniature power pentodes designed for service as audio power amplifiers.Type 12EH5 differs from the others in that it is controlled for heater warm-up time and has a higher heatercathode voltage rating.
The 6EH5,12EH5,25EH5 and 50EH5 has some maximum ratings(design center values).The plate voltage is 135 volts.The grid NO.2 voltage is 117 volts.The grid NO.1 voltage is 0 volts.The plate dissipation is 5 watts.The grid NO.2 dissipation is 1.75 watts.The grid NO.2 circuit resistance:Fixed bias is 0.1 megohm.Cathode bias is 0.5 megohm.
The 6EH5,12EH5,25EH5 and 50EH5 has some characteristics and typical operation.The plate voltage is 110 volts.The grid NO.2 voltage is 115 volts.The cathode resistor is 62 ohms.The peak AF grid NO.1 voltage is 3 volts.The zero-signal plate current is 42 Ma.The maximum signal plate current is 42 Ma.The zero signal grid No.2 current is 11.5 Ma.The maximum signal grid No.2 current is 14.5 Ma.The transconductance is 14600 μmhos.The plate resistance (approx) is 11000 ohms.The load resistance is 3000 ohms.The maximum signal power output is 1.4 watts.The total harmonic distortion is 7 percent.
At present there is not too much information about this model.If you are willing to find more about EH5,12EH5,25EH5 and 50EH5, please pay attention to our web! We will promptly update the relevant information.
Parameters
| Technical/Catalog Information | 6EH5 |
| Vendor | Tyco Electronics |
| Category | Filters |
| Type | IEC 320-C14 (Male Pins) |
| Mounting Type | Panel Mount, Screw Hole; Through Hole, Right Angle |
| Termination Style | Wire Leads |
| Current | 6A |
| Voltage | 250V |
| Features | - |
| Filter Type | Medical RFI |
| Fuse Drawer | Fuse Not Required |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 6EH5 6EH5 |

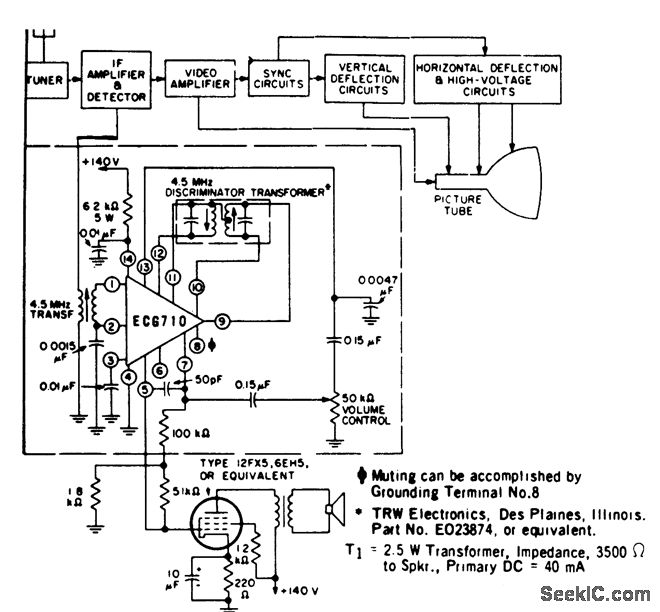

Connection Diagram
TV FM sound IF with tube-type audio output stage. The ECG710 contains a multistage wide-band amplifier section, a zener-regulated power supply section, and an AF amplifier section (courtesy GTE Sylvania Incorporated).
