SeekIC No. : 003444316 Detail

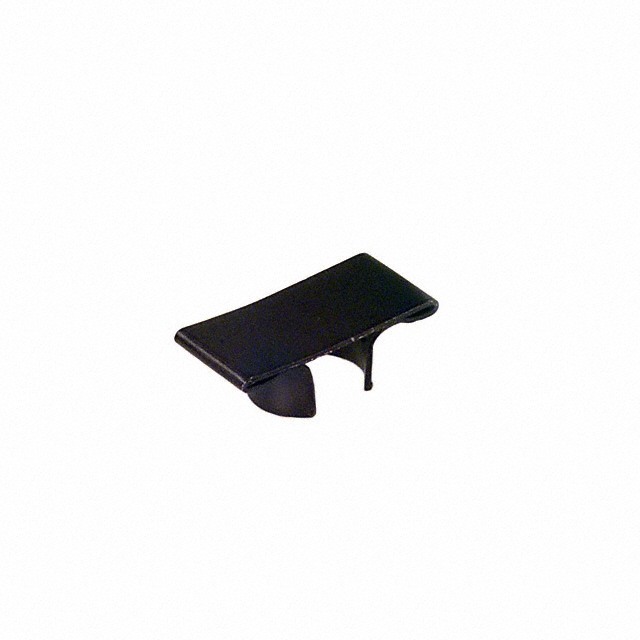

7-175-BA: HEATSINK PRESS ON .25"H BLK TO-5

7-175-BA Data Sheet

US $ .74~1.74 / Piece | Get Latest Price

Part Number:: 7-175-BA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~5000

Unit Price
$1.74
$1.45
$1.02
$.87
$.81
$.74

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2026/2/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7-1726202-7 evaluate
INDUCTOR 1.5UH 9.0A 20% SMD 1364
7-1734774-1 evaluate
US $.79 - .79 / Piece

PCI Express / PCI Connectors PCI EXP 3.1L 98 POS BLK 30u
7-174645-2 evaluate
US $.4 - .47 / Piece

Board to Board / Mezzanine Connectors 1.25FP P12 DL O N BG 7.00 8.90

Product Details

Quick Details

Series:	7	Capacitance :	16.5 pF
Manufacturer:	CTS Thermal Management Products	Type:	Top Mount
Package Cooled:	TO-5	Attachment Method:	Press Fit
Shape:	Rectangular	Length:	0.700" (17.78mm)
Width:	0.325" (8.26mm)	Diameter:	-
Height Off Base (Height of Fin):	0.250" (6.35mm)	Power Dissipation @ Temperature Rise:	1W @ 60°C
Thermal Resistance @ Forced Air Flow:	-	Thermal Resistance @ Natural:	58°C/W
Material:	Aluminum

Description

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Shape: Rectangular
Thermal Resistance @ Forced Air Flow: -
Series: 7
Manufacturer: CTS Thermal Management Products
Type: Top Mount
Package Cooled: TO-5
Attachment Method: Press Fit
Length: 0.700" (17.78mm)
Width: 0.325" (8.26mm)
Height Off Base (Height of Fin): 0.250" (6.35mm)
Power Dissipation @ Temperature Rise: 1W @ 60°C
Thermal Resistance @ Natural: 58°C/W

Parameters:

Technical/Catalog Information	7-175-BA
Vendor	CTS Thermal Management Products
Category	Fans, Thermal Management
Attachment Method	Press Fit
Height	0.25" (6.35mm)
Material	Aluminum
Package Cooled	TO-5
Power Dissipation @ Temperature Rise	1W @ 60°C
Thermal Resistance @ Forced Air Flow	-
Outline	17.78mm x 8.25mm
Thermal Resistance @ Natural	58°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7 175 BA 7175BA 294 1106 ND 2941106ND 294-1106
