SeekIC No. : 003445033 Detail

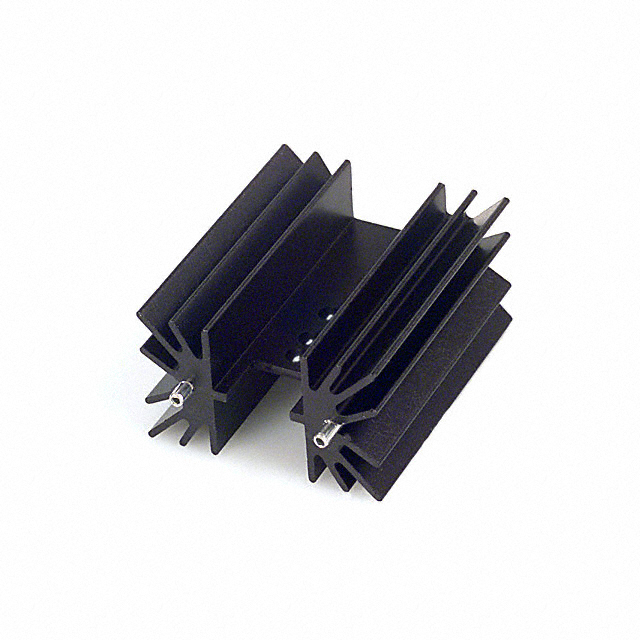

7-339-4PP-BA: HEATSINK PWR W/PINS BLACK TO-220

7-339-4PP-BA Data Sheet

US $ 2.95~5.79 / Piece | Get Latest Price

Part Number:: 7-339-4PP-BA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~5000

Unit Price
$5.79
$5.21
$4.05
$3.47
$3.24
$2.95

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7-335-000-BA evaluate
HEATSINK HORZ .520"H BLACK TO-3
7-338069-4 evaluate
US $.36 - .63 / Piece

Headers & Wire Housings FOB 4 POS TOP ENTRY SMT
7-338069-6 evaluate
US $.56 - .93 / Piece

Headers & Wire Housings FOB 6 POS TOP ENTRY SMT

Product Details

Quick Details

Capacitance :	16.5 pF	Series:	7
Manufacturer:	CTS Thermal Management Products	Type:	Board Level, Vertical
Package Cooled:	TO-220	Attachment Method:	Bolt On and PC Pin
Shape:	Rectangular	Length:	2.461" (63.50mm)
Width:	1.650" (41.91mm)	Diameter:	-
Height Off Base (Height of Fin):	1.000" (25.40mm)	Power Dissipation @ Temperature Rise:	9W @ 40°C
Thermal Resistance @ Forced Air Flow:	-	Thermal Resistance @ Natural:	5.7°C/W
Material:	Aluminum

Description

Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Shape: Rectangular
Thermal Resistance @ Forced Air Flow: -
Type: Board Level, Vertical
Package Cooled: TO-220
Attachment Method: Bolt On and PC Pin
Series: 7
Manufacturer: CTS Thermal Management Products
Power Dissipation @ Temperature Rise: 9W @ 40°C
Height Off Base (Height of Fin): 1.000" (25.40mm)
Width: 1.650" (41.91mm)
Length: 2.461" (63.50mm)
Thermal Resistance @ Natural: 5.7°C/W

Parameters:

Technical/Catalog Information	7-339-4PP-BA
Vendor	CTS Thermal Management Products
Category	Fans, Thermal Management
Attachment Method	Bolt On and PC Pin
Height	2.5" (63.5mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	9W @ 40°C
Thermal Resistance @ Forced Air Flow	-
Outline	41.91mm x 25.40mm
Thermal Resistance @ Natural	5.7°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7 339 4PP BA 73394PPBA 294 1032 ND 2941032ND 294-1032
