7016X11

Standard LED - SMD RED 1.75V 20MA

product image

7016X11 Picture
See larger image
SeekIC No. : 0048153 Detail

7016X11: Standard LED - SMD RED 1.75V 20MA

7016X11 Data Sheet

floor Price/Ceiling Price

US $ .12~.17 / Piece | Get Latest Price
Part Number:
7016X11
Mfg:
Chicago Miniature
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~100
  • 100~500
  • 500~1000
  • Unit Price
  • $.17
  • $.16
  • $.14
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

LED Size : 3 mm x 2 mm Illumination Color : Red
Wavelength/Color Temperature : 660 nm Lens Color/Style : Water Clear
Forward Current : 20 mA Forward Voltage : 1.75 V
Luminous Intensity : 16 mcd Viewing Angle : 110 deg
Packaging : Reel

Description

Lens Color/Style : Water Clear
Forward Current : 20 mA
Packaging : Reel
Illumination Color : Red
Luminous Intensity : 16 mcd
Viewing Angle : 110 deg
LED Size : 3 mm x 2 mm
Wavelength/Color Temperature : 660 nm
Forward Voltage : 1.75 V

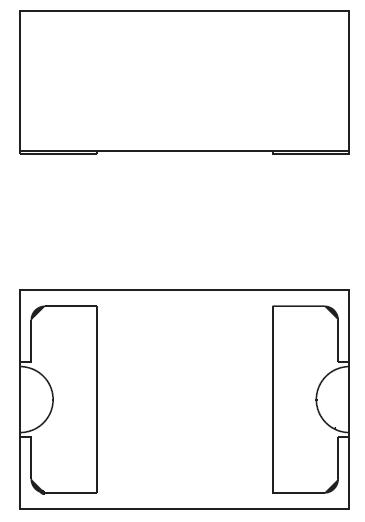

Pinout




Specifications

Part Number: 7016X11
Serial Number: 7016X
LED Type: SMT
Industry Size: 1208
Metric Size: 3.0 x 2.0 x 1.3 mm
Output Color: RED
Epoxy: CLEAR NON-DIFFUSED
Peak Wave length (mA): 660
Minimum MCD: All
Typical MCD: 16
Forward Volt (Typical): 1.75
Forward Volt (Max): 2.5
Rate Current (mA): 20
Viewing Angle (°): 110
Operating Temperature: -0.352941176
Storage Temperature:
Power Dissipation: 75
Cont Forward Current Max: 30
RoHS Status: Yes
