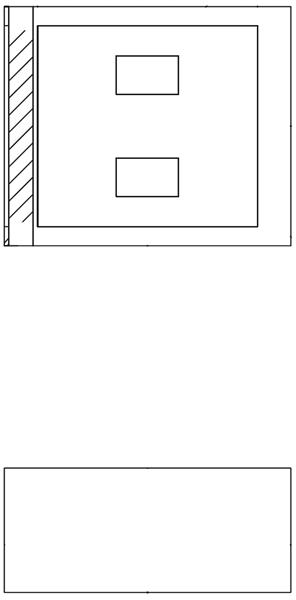

See larger image

SeekIC No. : 0051729 Detail

7016X5/7: Standard LED - SMD GREEN/YELLOW DIFF

7016X5/7 Data Sheet

US $ .25~.32 / Piece | Get Latest Price

Part Number:: 7016X5/7
Mfg:: Chicago Miniature
Supply Ability:: 5000

Price Break

Qty
0~950
950~1000
1000~2000
2000~2500

Unit Price
$.32
$.29
$.25
$.25

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7016 evaluate
US $1.59 - 2.36 / Piece

Power Inductors 31.25uH 15%
70160 evaluate
US $1.26 - 1.26 / Piece

BIT INSERT TORX TR 1/4" TR27
70160103 evaluate
US $20.12 - 26.92 / Piece

KEYPAD 16 KEY W/LEGEND SEALED

Product Details

Quick Details

LED Size :	3 mm x 2.5 mm	Illumination Color :	Green
Viewing Angle :	110 deg	Packaging :	Reel

Description

Wavelength/Color Temperature :
Lens Color/Style :
Forward Current :
Forward Voltage :
Luminous Intensity :
Illumination Color : Green
Packaging : Reel
Viewing Angle : 110 deg
LED Size : 3 mm x 2.5 mm

Pinout

Specifications

Part Number: 7016X5/7
Serial Number: 7016X
LED Type: SMT
Industry Size: 1210
Metric Size: 3.0 x 2.5 x 1.3 mm
Output Color: GREEN/YELLOW
Epoxy: CLEAR NON-DIFFUSED
Peak Wave length (mA): 570/580
Minimum MCD: 9.0/9.0
Typical MCD: 20.0/16.0
Forward Volt (Typical): 2.2/2.2
Forward Volt (Max): 2.8/2.8
Rate Current (mA): 20
Viewing Angle (°): 110
Operating Temperature: -0.352941176
Storage Temperature:
Power Dissipation: 60
Cont Forward Current Max: 25
RoHS Status: Yes

Parameters:

Technical/Catalog Information	7016X5/7
Vendor	CML Innovative Technologies Inc
Category	Optoelectronics
Color	Green-Yellow
Lens Style/Size	Rectangle, 2.3mm x 2.2mm
Millicandela Rating	20mcd Green, 16mcd Yellow
Voltage - Forward (Vf) Typ	2.2V Green, 2.2V Yellow
Wavelength - Dominant	570nm, 580nm
Wavelength - Peak	570nm, 580nm
Current - Test	20mA
Viewing Angle	110°
Lens Type	Clear
Luminous Flux	54 mlm Green, 43 mlm Yellow
Package / Case	1210 (3225 metric)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7016X5 7 7016X57
