7021B-MT5

BOARD LEVEL HEAT SINK

product image

7021B-MT5 Picture
See larger image
SeekIC No. : 004239425 Detail

7021B-MT5: BOARD LEVEL HEAT SINK

7021B-MT5 Data Sheet

floor Price/Ceiling Price

US $ .42~.42 / Piece | Get Latest Price
Part Number:
7021B-MT5
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~3000
  • Unit Price
  • $.42
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

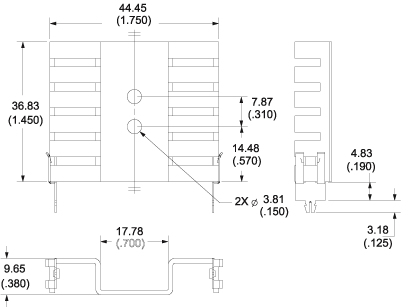

Connection Diagram


Specifications

Part # Description Finish Board Mounting
7021B-MT5 Channel style heat sink with folded back fins and solderable mounting tabs Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 6.80

Thermal resistance value is based on a 75C rise in natural convection  7021B-MT5


Parameters:

Technical/Catalog Information7021B-MT5
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.45" (36.83mm)
MaterialAluminum
Package Cooled-
Power Dissipation @ Temperature Rise6W @ 50°C
Thermal Resistance @ Forced Air Flow4°C/W @ 300 LFM
Outline33.02mm x 14.90mm
Thermal Resistance @ Natural-
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 7021B MT5
7021BMT5
