7021B-MTG

Heat Sinks TO-220 VERT MOUNT

product image

7021B-MTG Picture
SeekIC No. : 002533824 Detail

7021B-MTG: Heat Sinks TO-220 VERT MOUNT

floor Price/Ceiling Price

US $ .39~.44 / Piece | Get Latest Price
Part Number:
7021B-MTG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~4050
  • 4050~6000
  • 6000~9000
  • Unit Price
  • $.44
  • $.41
  • $.39
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Through Hole
Heatsink Material : Aluminum Fin Style : Folded Back
Length : 9.65 mm Width : 44.45 mm
Height : 36.83 mm Designed for : TO-220

Description

Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Through Hole
Designed for : TO-220
Fin Style : Folded Back
Height : 36.83 mm
Width : 44.45 mm
Length : 9.65 mm


Pinout

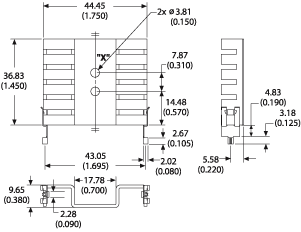

  Connection Diagram


Specifications

Part # Description Finish Board Mounting
7021B-MTG Channel style heat sink with folded back fins and mounting tabs Black Anodize View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 6.80

Thermal resistance value is based on a 75C rise in natural convection 7021B-MTG


Parameters:

Technical/Catalog Information7021B-MTG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On
Height1.45" (36.83mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise6W @ 50°C
Thermal Resistance @ Forced Air Flow4°C/W @ 300 LFM
Outline44.45mm x 9.65mm
Thermal Resistance @ Natural6.8°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 7021B MTG
7021BMTG
