7022BG

BOARD LEVEL HEAT SINK

product image

7022BG Picture
See larger image
SeekIC No. : 004239436 Detail

7022BG: BOARD LEVEL HEAT SINK

7022BG Data Sheet

floor Price/Ceiling Price

US $ .36~.36 / Piece | Get Latest Price
Part Number:
7022BG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~2500
  • Unit Price
  • $.36
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

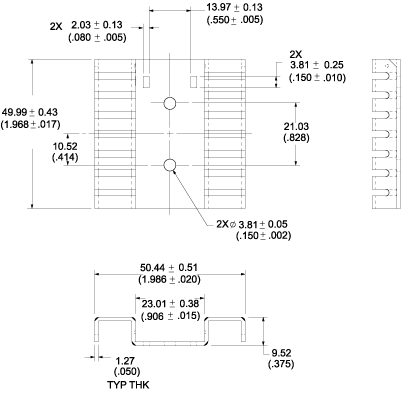

Connection Diagram


Specifications

Part # Description Finish Board Mounting
7022BG Channel style heat sink with folded back fins Black Anodize N/A



Description

Thermal Resistance 6.50


Thermal resistance value is based on a 75C rise in natural convection

7022BG




Parameters:

Technical/Catalog Information7022BG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodBolt On and PC Pin
Height1.97" (50.04mm)
MaterialAluminum
Package CooledTO-220
Power Dissipation @ Temperature Rise10W @ 70°C
Thermal Resistance @ Forced Air Flow-
Outline50.44mm x 9.52mm
Thermal Resistance @ Natural6.5°C/W
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 7022BG
