7022PB-MTG: BOARD LEVEL HEAT SINK

7022PB-MTG Data Sheet

US $ .39~.39 / Piece | Get Latest Price

Part Number:: 7022PB-MTG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
1~2000

Unit Price
$.39

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7022 evaluate
US $.36 - .51 / Piece

Lamps INCND BI-PIN BASE LAMP
7022.0010 evaluate
US $1.43 - 2.81 / Piece

Fuses A12FA 380V 125mA
7022.013 evaluate
US $1.73 - 1.73 / Piece

Fuses A12FA 380V FUSE 2A FF

Product Details

Description

Pinout

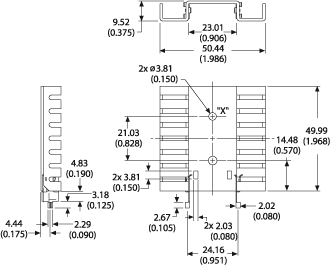

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
7022PB-MTG	Channel style heat sink with folded back fins and solderable mounting tabs	Pre-Black Anodize	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

6.50

7022PB-MTG Thermal resistance value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	7022PB-MTG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1.97" (50.04mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	10W @ 70°C
Thermal Resistance @ Forced Air Flow	-
Outline	50.44mm x 9.52mm
Thermal Resistance @ Natural	6.5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7022PB MTG 7022PBMTG
