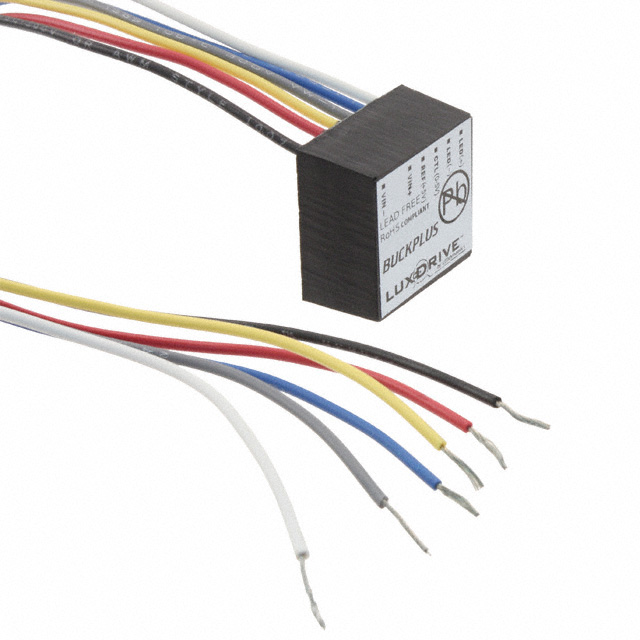

7023-D-N-500: LED DVR BUCKPLUS 500MA 4 LEAD

7023-D-N-500 Data Sheet

Get Latest Price

Part Number:: 7023-D-N-500
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7023 evaluate
US $2.51 - 3.07 / Piece

Power Inductors 450uH 15%
7023 BK001 evaluate
Wire - Single Conductor BLACK 1000'
7023 RD001 evaluate
Wire - Single Conductor RED 1000'

Product Details

Quick Details

Driver Type :	CCFL Controller	Series:	BuckPlus™ 7023
Manufacturer:	LEDdynamics Inc	Type:	Constant Current
Topology:	Buck	Number of Outputs:	1
Voltage - Input (Min):	5V	Voltage - Input (Max):	32V
Voltage - Output:	32V (Max)	Current - Output (Max):	500mA
Power (Watts):	16W	Voltage - Isolation:	-
Dimming:	Analog	Features:	SCP
Operating Temperature:	-40°C ~ 80°C	Efficiency:	95%
Termination Style:	Wire Leads

Description

Type: Constant Current
Number of Outputs: 1
Voltage - Isolation: -
Termination Style: Wire Leads
Power (Watts): 16W
Topology: Buck
Dimming: Analog
Operating Temperature: -40°C ~ 80°C
Manufacturer: LEDdynamics Inc
Voltage - Input (Min): 5V
Features: SCP
Series: BuckPlus™ 7023
Voltage - Input (Max): 32V
Voltage - Output: 32V (Max)
Efficiency: 95%
Size / Dimension: 0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)
Current - Output (Max): 500mA

Parameters:

Technical/Catalog Information	7023-D-N-500
Vendor	LEDdynamics Inc
Category	Power Supplies
Voltage - Input	5 ~ 32V
Voltage - Output	32V
Current - Output	500mA
Termination Style	Wire Leads
Size / Dimension	0.83' L x 0.83" W x 0.43" H (21.08mm x 21.08mm x 10.92mm)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7023 D N 500 7023DN500 788 1032 ND 7881032ND 788-1032
