70F101AF-RC, US $ .83-1.96 , J.W. Miller, 70F101AF-RC DataSheet download, circuit diagram from SeekIC.com

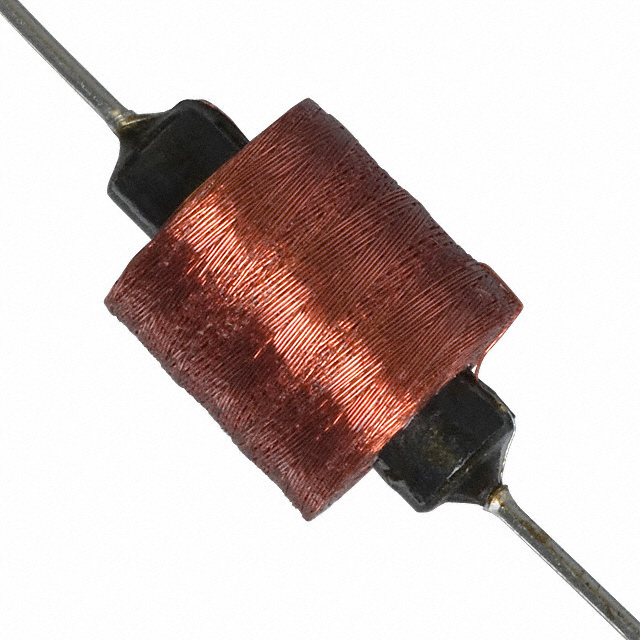

See larger image

SeekIC No. : 001210672 Detail

70F101AF-RC: RF Inductors 100mH 5%

70F101AF-RC Data Sheet

US $ .83~1.96 / Piece | Get Latest Price

Part Number:: 70F101AF-RC
Mfg:: J.W. Miller
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$1.96
$1.12
$.97
$.83

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

70F101AF evaluate
RF Inductors 100mH 5%
70F102AI evaluate
RF Inductors 10mH 5%
70F102AI-RC evaluate
US $.53 - 1.05 / Piece

RF Inductors 10mH 5%

Product Details

Quick Details

Inductance :	100 mH	Tolerance :	5 %
Maximum DC Current :	29 mAmps	Maximum DC Resistance :	278 Ohms
Self Resonant Frequency :	0.157 MHz	Q Minimum :	48
Termination Style :	Axial

Description

Operating Temperature Range :
Package / Case :
Tolerance : 5 %
Q Minimum : 48
Termination Style : Axial
Inductance : 100 mH
Maximum DC Current : 29 mAmps
Maximum DC Resistance : 278 Ohms
Self Resonant Frequency : 0.157 MHz

Parameters:

Technical/Catalog Information	70F101AF-RC
Vendor	JW Miller A Bourns Company
Category	Inductors, Coils, Chokes
Inductance	100mH
Tolerance	±5%
Package / Case	Axial
Packaging	Bulk
Type	Ferrite Core
Current	29mA
Mounting Type	Through Hole
Q @ Freq	48 @ 79kHz
Self Resonant Freq	157kHz
DC Resistance (DCR)	278.0 Ohm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	70F101AF RC 70F101AFRC M8393 ND M8393ND M8393
