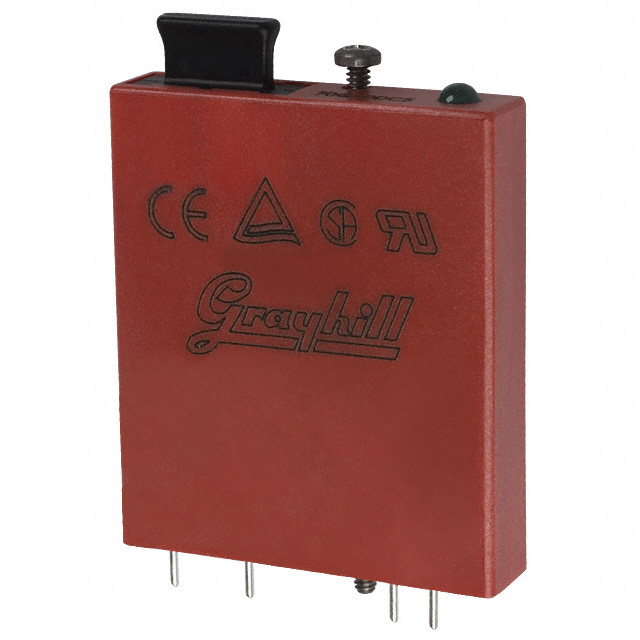

See larger image

SeekIC No. : 003827749 Detail

70G-ODC15: OUTPUT MODULE DC G5 9MA 15VDC

70G-ODC15 Data Sheet

US $ 4.46~6.87 / Piece | Get Latest Price

Part Number:: 70G-ODC15
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250
250~500
500~1000

Unit Price
$6.87
$6.18
$5.84
$5.5
$4.81
$4.46

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

70G-1/2A evaluate
US $9.47 - 11.14 / Piece

Fuses 125VAC/300VDC .5A Indicating w/Holder
70G-IAC evaluate
Features: • Transient Protection: Meets the requirements of IEEE 472, Surge Withstanding Ca...
70G-IAC15 evaluate
US $6.25 - 6.25 / Piece

INPUT MODULE AC 8MA 15VDC

Product Details

Quick Details

Series:	70	Manufacturer:	Grayhill Inc
Type:	DC	Color:	Red
Style:	G5	Program Memory Size :	256000 B
Voltage - Input:	15VDC (10 ~ 20VDC)	Current - Input:	9mA
Voltage - Output:	3 ~ 60VDC	Current - Output:	0.02 ~ 3.5A
Turn On Time:	0.02ms	Turn Off Time:	0.05ms

Description

Type: DC
Color: Red
Voltage - Output: 3 ~ 60VDC
Series: 70
Manufacturer: Grayhill Inc
Turn On Time: 0.02ms
Turn Off Time: 0.05ms
Current - Input: 9mA
Current - Output: 0.02 ~ 3.5A
Style: G5
Features: Hold Down Screw, Fused, Status LED(s)
Voltage - Input: 15VDC (10 ~ 20VDC)

Parameters:

Technical/Catalog Information	70G-ODC15
Vendor	Grayhill Inc.
Category	Relays, I/O Modules
Mounting Type	Through Hole
Mounting Type	Socket
Type	DC Output Module
Output Type	3 ~ 60VDC
Circuit	SPST-NO
Switch Function	Off-On
Contact Rating @ Voltage	3.5A @ 60VDC
Termination Style	PC Pin
Termination Style	Socketable
Output Voltage	3.000 VDC [Min]
Output Voltage	60.000 VDC [Max]
Output Voltage	60.000 VDC [Typ]
Operating Temperature	-40 °C [Min]
Operating Temperature	100 °C [Max]
Input Voltage	10.000 VDC [Min]
Input Voltage	20.000 VDC [Max]
Input Voltage	15.000 VDC [Typ]
Output Current	0.02 A [Min]
Output Current	3.50 A [Max]
Fall Time	0.050 ms [Max]
Rise Time	0.02 ms [Max]
Height	55.900 mm [Typ]
Length	48.300 mm [Typ]
Width	11.700 mm [Typ]
Special Features	LED Illuminated
Housing Color	Red
Standard	UL
Standard	CSA
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	70G ODC15 70GODC15 GH3041 ND GH3041ND GH3041
