7130DG: Heat Sinks COPPR SLIDEON TO218 25.91mm VERT TIN PLT

7130DG Data Sheet

US $ 2.98~3.31 / Piece | Get Latest Price

Part Number:: 7130DG
Mfg:: Aavid Thermalloy
Supply Ability:: 5000

Price Break

Qty
0~999
999~1000
1000~1500

Unit Price
$3.31
$3.07
$2.98

Processing time
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

7130 BK001 evaluate
US $128.74 - 150.66 / Piece

Wire - Single Conductor 24AWG 7/32 IRRPVC 1000ft SPOOL BLACK
7130 BK005 evaluate
US $27.4 - 41.9 / Piece

Wire - Single Conductor 24AWG 7/32 IRRPVC 100ft SPOOL BLACK
7130 BL001 evaluate
US $128.74 - 150.66 / Piece

Wire - Single Conductor 24AWG 7/32 IRRPVC 1000ft SPOOL BLUE

Product Details

Quick Details

Product :	Heatsinks	Mounting Style :	Through Hole
Heatsink Material :	Copper	Fin Style :	Channel
Length :	26.04 mm	Width :	25.53 mm
Height :	15.49 mm	Designed for :	TO-218

Description

Thermal Resistance :
Product : Heatsinks
Mounting Style : Through Hole
Heatsink Material : Copper
Fin Style : Channel
Width : 25.53 mm
Designed for : TO-218
Length : 26.04 mm
Height : 15.49 mm

Pinout

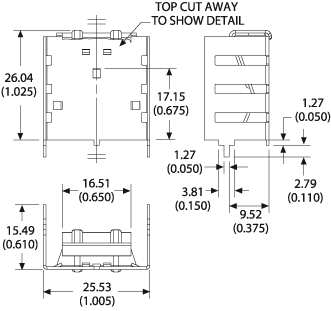

Connection Diagram

Specifications

Part #	Description	Finish	Board Mounting
7130DG	Copper slide on heat sink	Matte Tin Finish	N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

Description

Thermal Resistance

23.10

7130DG Thermal resistance value is based on a 75C rise in natural convection

Parameters:

Technical/Catalog Information	7130DG
Vendor	Aavid Thermalloy
Category	Thermal Management
Attachment Method	Clip and PC Pin
Height	1.02" (26mm)
Material	Copper
Package Cooled	TO-218
Power Dissipation @ Temperature Rise	0.5W @ 20°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 500 LFM
Outline	25.53mm x 15.49mm
Thermal Resistance @ Natural	23.1°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	7130DG 7130DG
