SeekIC No. : 004170360 Detail

71BD36-01-2-AJN: SW RTRY DP 1/4A .5-.75" SLDR TRM

71BD36-01-2-AJN Data Sheet

US $ 5.76~11.23 / Piece | Get Latest Price

Part Number:: 71BD36-01-2-AJN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$11.23
$8.99
$6.74
$5.76

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

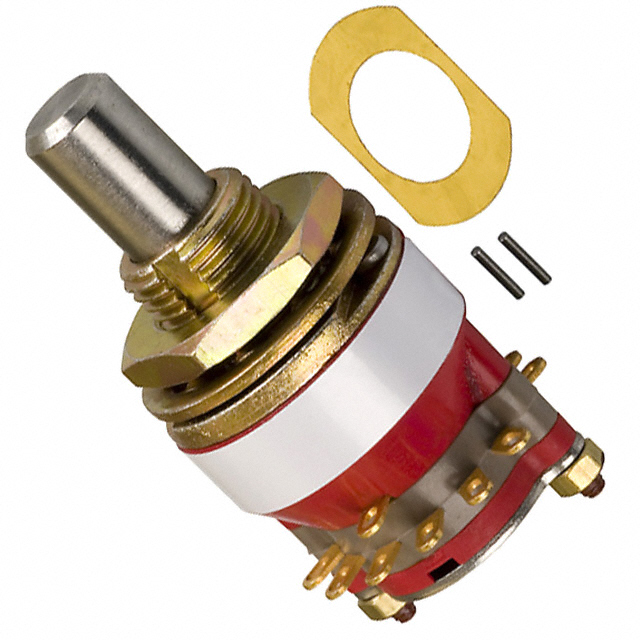

71BD30-01-1-AJN evaluate
US $5.54 - 10.81 / Piece

SWITCH ROTARY 1P-12POS 1 DECK
71BD30-01-1-AJS evaluate
US $9.61 - 9.61 / Piece

ROTARY SWITCH ADJ STOP
71BD30-01-2-AJN evaluate
US $5.76 - 11.23 / Piece

SWITCH ROTARY 2P-6POS 1 DECK

Product Details

Quick Details

Series:	71	Manufacturer:	Grayhill Inc
Number of Positions:	2 ~ 5	Number of Decks:	1
Packaging :	Reel	Number of Poles per Deck:	2
Circuit per Deck:	DP5T	Contact Rating @ Voltage:	0.25A @ 28VDC
Actuator Type:	Flatted (6.35mm dia)	Mounting Type:	Panel Mount
Termination Style:	Solder Lug	Orientation:	Vertical

Description

Number of Decks: 1
Orientation: Vertical
Angle of Throw: 36°
Actuator Type: Flatted (6.35mm dia)
Number of Poles per Deck: 2
Mounting Type: Panel Mount
Termination Style: Solder Lug
Manufacturer: Grayhill Inc
Circuit per Deck: DP5T
Number of Positions: 2 ~ 5
Series: 71
Contact Rating @ Voltage: 0.25A @ 28VDC

Parameters:

Technical/Catalog Information	71BD36-01-2-AJN
Vendor	Grayhill Inc
Category	Switches
Actuator Type	Flatted (6.35mm dia)
Mounting Type	Panel Mount
Number of Positions	2 ~ 5
Number of Decks	1
Number of Poles per Deck	2
Angle of Throw	36°
Contact Rating @ Voltage	0.25A @ 28VDC
Orientation	Vertical
Termination Style	Solder Lug
Circuit per Deck	DP5T
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	71BD36 01 2 AJN 71BD36012AJN GH7312 ND GH7312ND GH7312
