Position: Home  > All Categories> Integrated Circuits (ICs) > 73G-ITCT

73G-ITCT

I/O MODULE T TYPE 12-BIT

product image

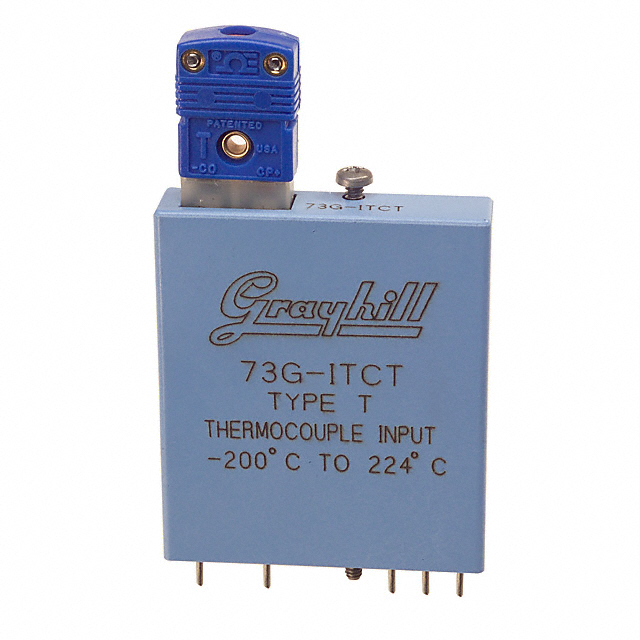

73G-ITCT Picture
See larger image
SeekIC No. : 003827595 Detail

73G-ITCT: I/O MODULE T TYPE 12-BIT

73G-ITCT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
73G-ITCT
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Core : HPC Series: 73
Manufacturer: Grayhill Inc Type: Input, Thermocouple
Color: Blue Style: G5
Number of Inputs, Outputs: 1 Channel, Differential Resolution: 12-bit; 0.10°C/count
Logic Voltage: 5VDC (4.5 ~ 5.5VDC) Module Type: T Type

Description

Series: 73
Manufacturer: Grayhill Inc
Type: Input, Thermocouple
Color: Blue
Style: G5
Number of Inputs, Outputs: 1 Channel, Differential
Logic Voltage: 5VDC (4.5 ~ 5.5VDC)
Serial Data Format: 12-bit packet
Resolution: 12-bit; 0.10°C/count
Module Type: T Type


Parameters:

Technical/Catalog Information73G-ITCT
VendorGrayhill Inc.
CategoryRelays, I/O Modules
Mounting TypeThrough Hole
Mounting TypeSocket
TypeT Thermcouple Input
Input TypeT Type, -200 ~ 224°C
CircuitSPST-NO
Switch FunctionOff-On
Input Voltage4.500 VDC [Min]
Input Voltage5.500 VDC [Max]
Termination StylePC Pin
Termination StyleSocketable
Operating Temperature0 °C [Min]
Operating Temperature60 °C [Max]
Input Current150.000 mA [Max]
Accuracy (±)3.000 °C [Nom]
Resolution0.1000 °C [Nom]
Height55.900 mm [Typ]
Length48.300 mm [Typ]
Width11.700 mm [Typ]
StandardUL
StandardCSA
Duty Cycle40.00 % [Min]
Duty Cycle60.00 % [Max]
Lead Free StatusLead Free Compliant by Exemption
RoHS StatusRoHS Compliant by Exemption
Other Names 73G ITCT
73GITCT
GH3028 ND
GH3028ND
GH3028
