Part Number: 74ABT2245



MFG: PHILIPS

Package Cooled: SSOP20

D/C: 07+

Description: The 74ABT2245 high-performance BiCMOS device combines low static and dynamic power dissipation with ...


Urgent Purchase

74ABT2245 General Description


   The 74ABT2245 high-performance BiCMOS device combines  low static and dynamic power dissipation with high speed.

   The 74ABT2245 device is an octal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features an Output Enable (OE ) input for easy cascading and a Direction (DIR) input for direction control.

   The 74ABT2245 is designed with 30Ω series resistance in both the High and Low states of the output.  This design reduces line noise in applications such as memory address drivers, clock drivers, and bus receivers/transmitters.

   The 74ABT2245 is the same as the 74ABT245-1. The part number has been changed to reflect industry standards.

74ABT2245 Maximum Ratings

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +7.0 V
IIK DC input diode current VI < 0 18 mA
VI DC input voltage3   1.2 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 output in Off or High state 0.5 to +5.5 V
IOUT DC output current output in Low state 128 mA
Tstg Storage temperature range   65 to 150 °C

74ABT2245 Features

•Octal bidirectional bus interface
•3-State buffers
•Output capability: +12mA/32mA
•Latch-up protection exceeds 500mA per Jedec Std 17
•ESD protection exceeds 2000 V per MIL STD 833 Method 3015 and 200 V per Machine Model
•Power-up 3-State
•Live insertion/extraction permitted
•Same as 74ABT245-1
•Outputs include series resistance of 30 Ω, making external termination resistors unnecessary
•Inputs are disabled during 3-State mode

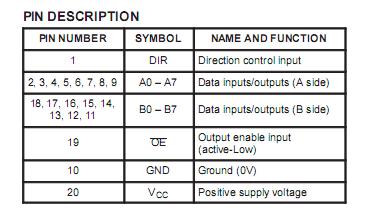

74ABT2245 Connection Diagram

74ABT2245 Connection Diagram74ABT2245 Connection Diagram

74ABT2245 datasheet

74ABT2245
PDF/DataSheet Download

  • Datasheet: 74ABT2245
  • File Size: 110449 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
