Part Number: 74ABT244



MFG: TI



D/C: 713

Description: The ABT244 is an octal buffer and line driver with 3-STATE outputs designed to be employed as a memor...


Urgent Purchase

74ABT244 General Description


   The ABT244 is an octal buffer and line driver with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver.

74ABT244 Maximum Ratings

Storage Temperature                                        -65to +150
Ambient Temperature under Bias                     -55 to +125
Junction Temperature under Bias                     -55 to +150
VCC Pin Potential to Ground Pin                         -0.5V to+7.0V
Input Voltage (Note 3)                                      -0.5V to +7.0V
Input Current (Note 3)                               -30 mA to +5.0 mA
Voltage Applied to Any Output
in the Disabled or
Power-Off State                                                  -0.5V to 5.5V
in the HIGH State                                                 -0.5V to VCC
Current Applied to Output
in LOW State (Max)                          twice the rated IOL (mA)
DC Latchup Source Current                                       -500 mA
Over Voltage Latchup (I/O)                                              10V

74ABT244 Features

 Non-inverting buffers
 Output sink capability of 64 mA, source capability of 32 mA
 Guaranteed output skew
 Guaranteed multiple output switching specifications
 Output switching specified for both 50 pF and 250 pF loads
 Guaranteed simultaneous switching, noise level and dynamic threshold performance
 Guaranteed latchup protection
 High impedance glitch free bus loading during entire power up and power down cycle
 Nondestructive hot insertion capability
 Disable time less than enable time to avoid bus contention

74ABT244 Connection Diagram

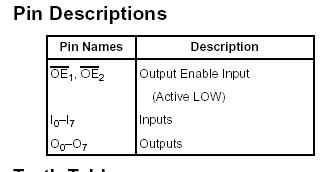

74ABT244 Connection Diagram74ABT244 Connection Diagram

74ABT244 datasheet

74ABT244
PDF/DataSheet Download
