74ABT652A

Features:

• Independent registers for A and B buses
• Multiplexed real-time and stored data
• 3-State outputs
• Live insertion/extraction permitted
• Power-up 3-State
• Power-up reset
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model

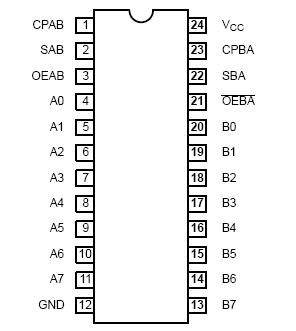

Pinout

Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output current	output in Low state	128	mA
Tstg	Storage temperature range		65 to 150	°C

Description

The 74ABT652A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The 74ABT652A transceiver/register consists of bus transceiver circuits with 3-State outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or the internal registers. Data on the A or B bus will be clocked into the registers as the appropriate clock pin goes High. Output Enable (OEAB, OEBA ) and Select (SAB, SBA) pins are provided for bus management.
